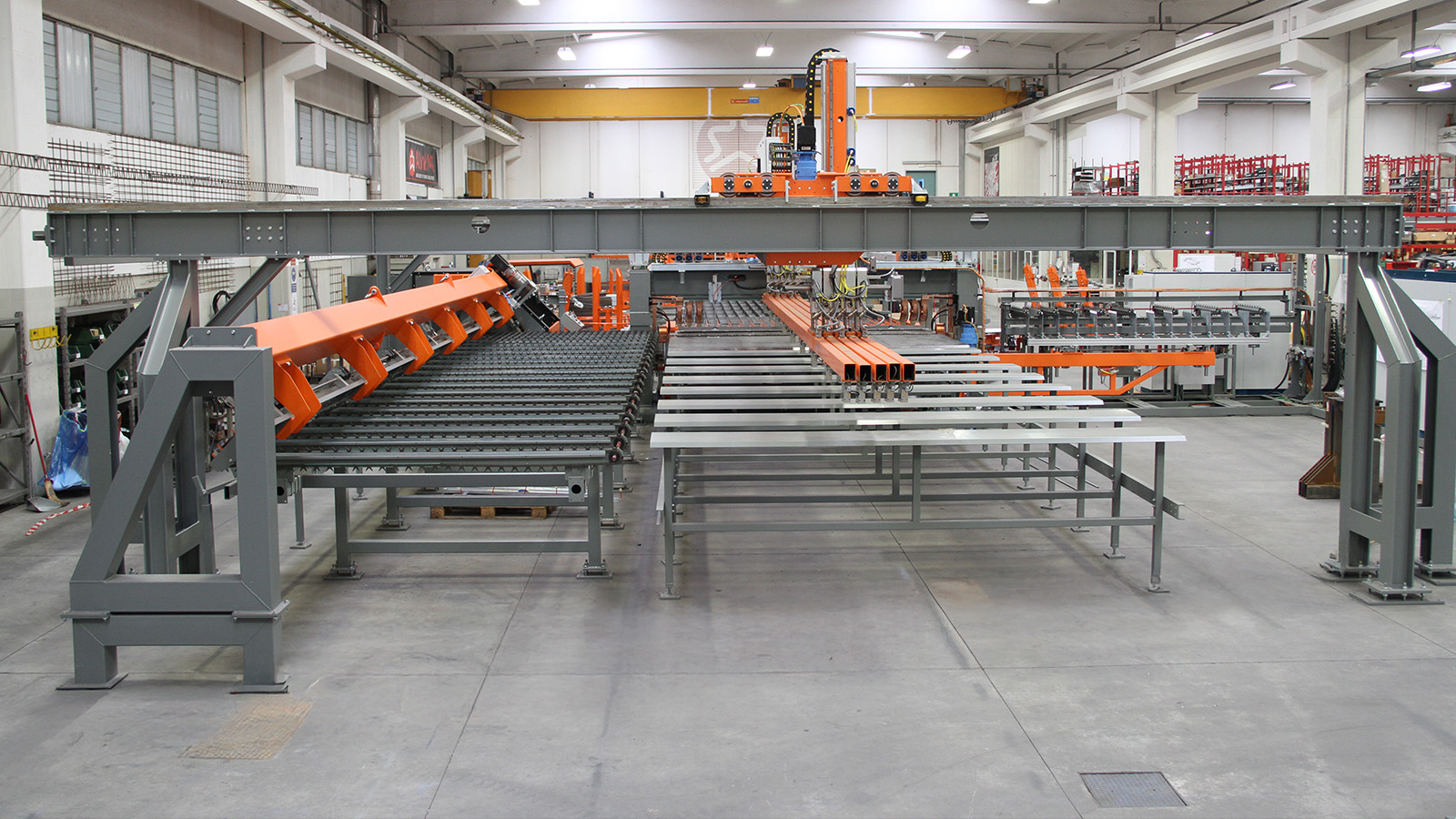

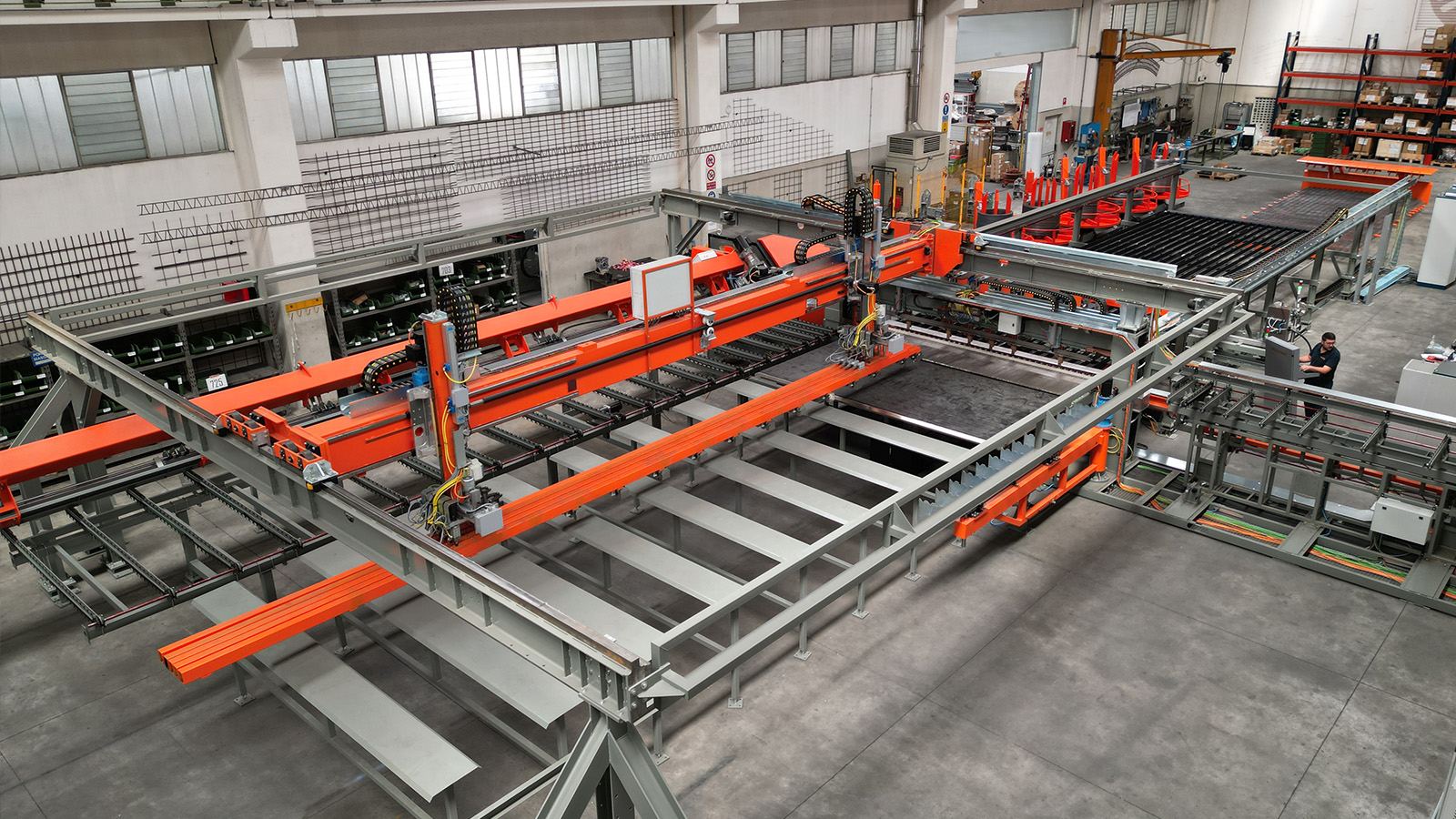

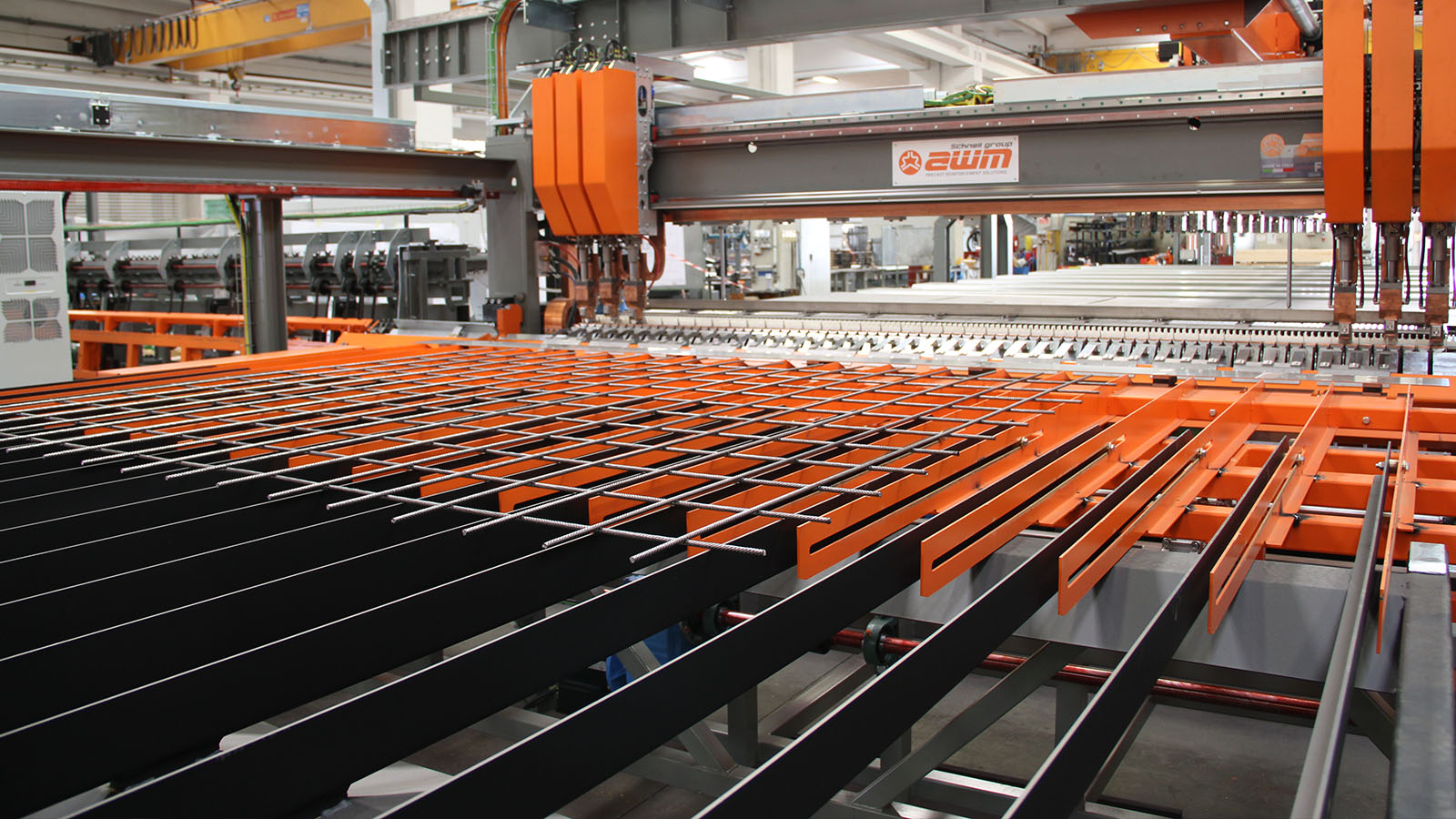

Special mesh welding plant
Flexiweld L

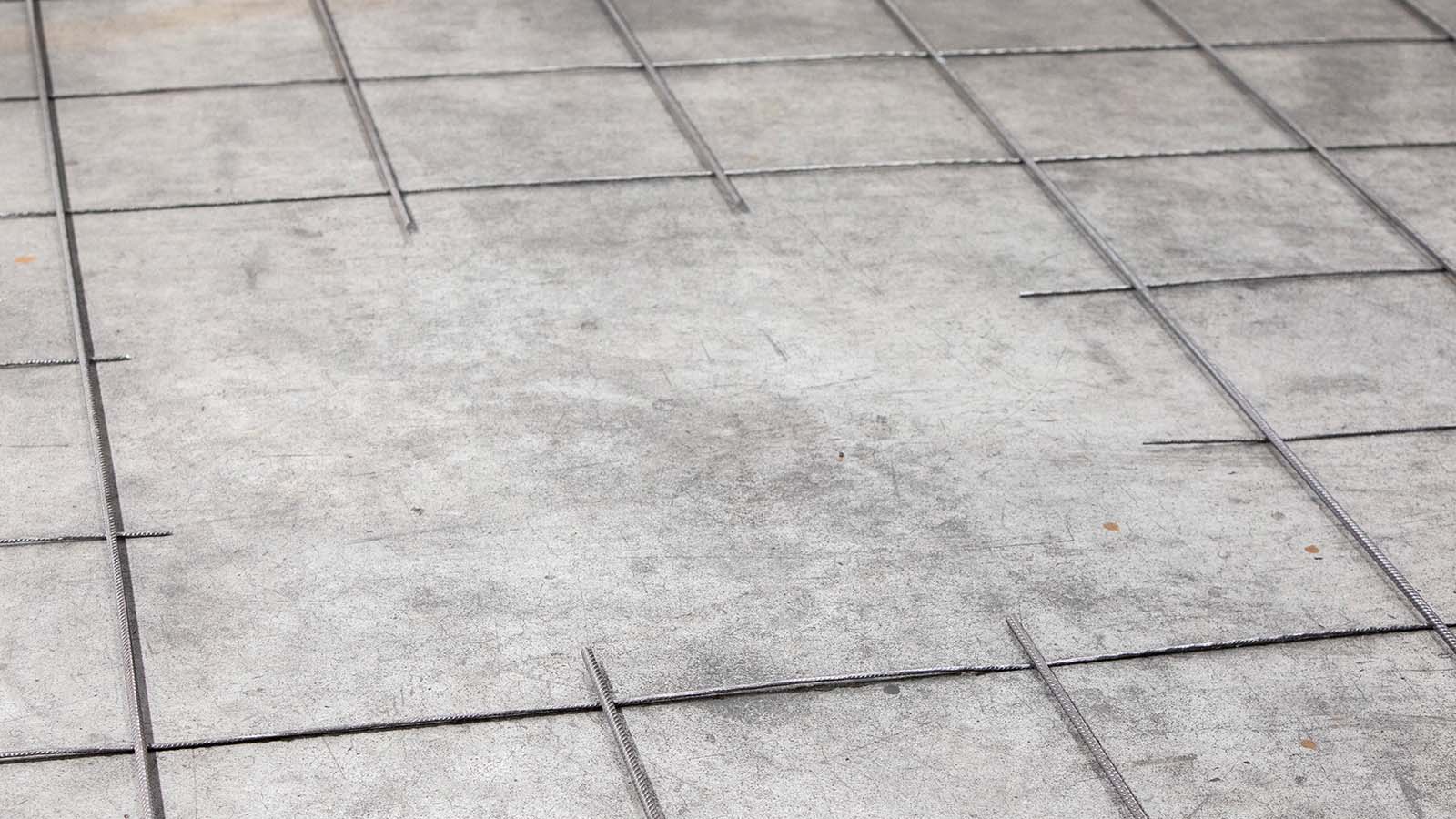

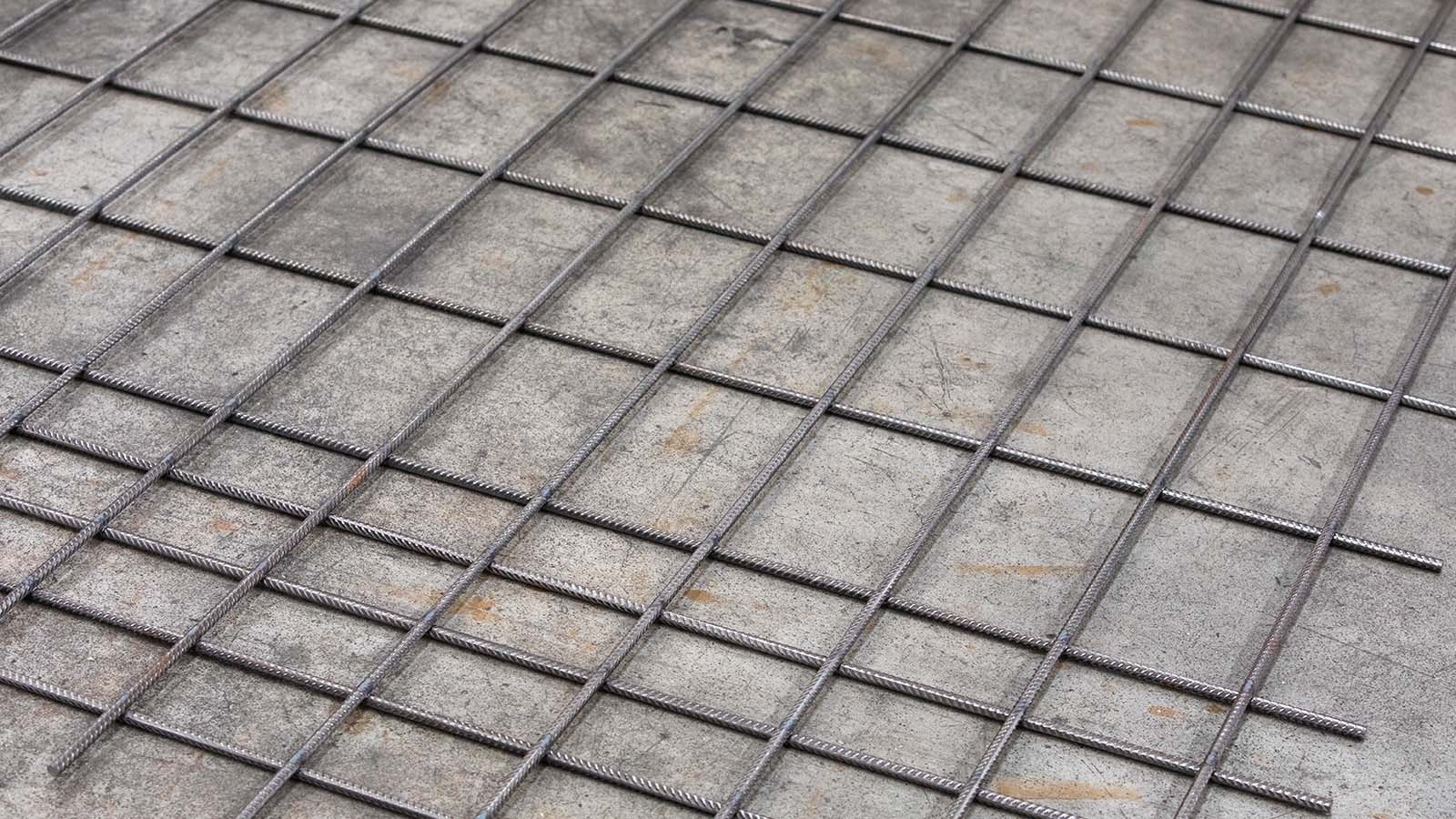

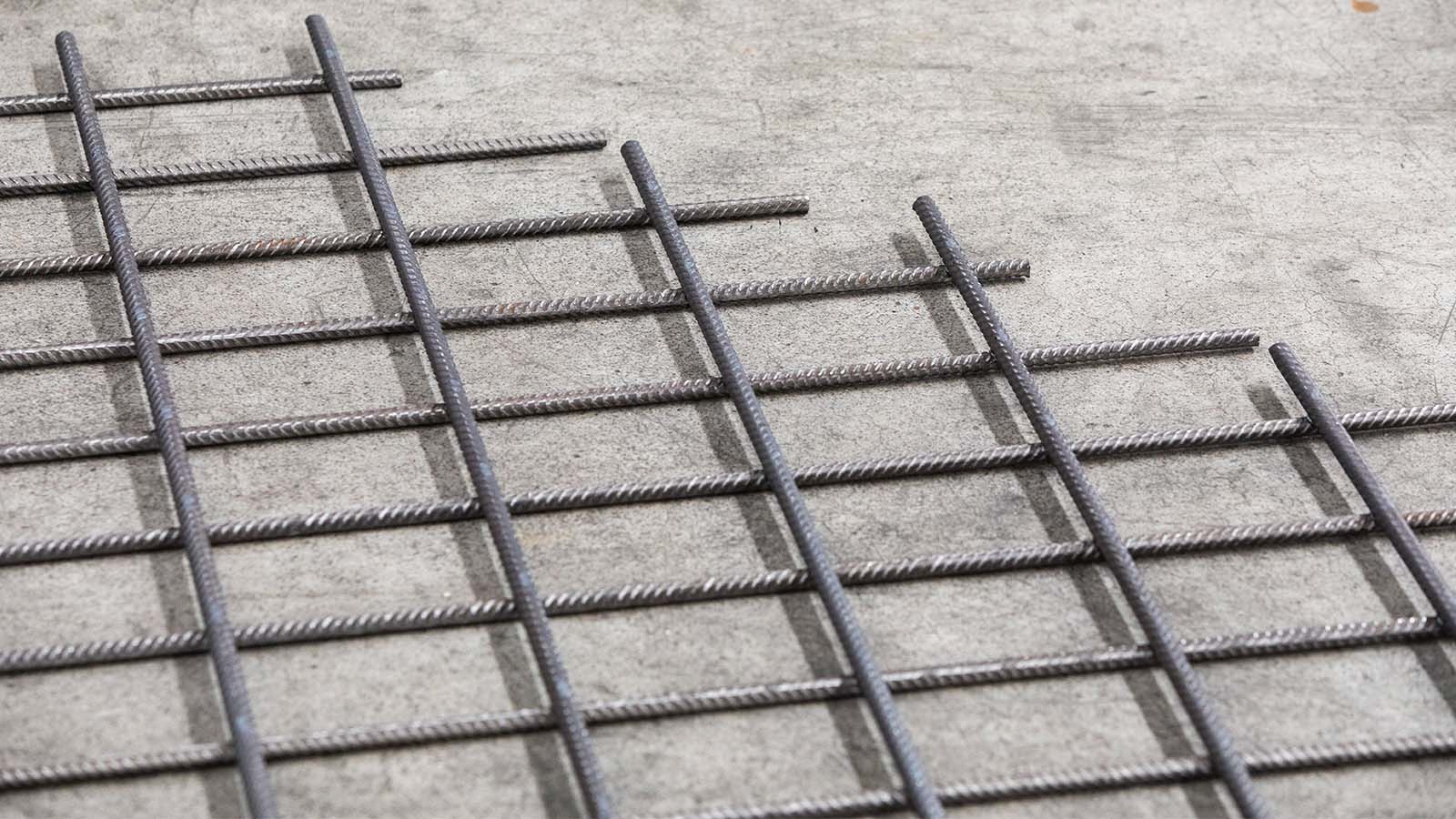

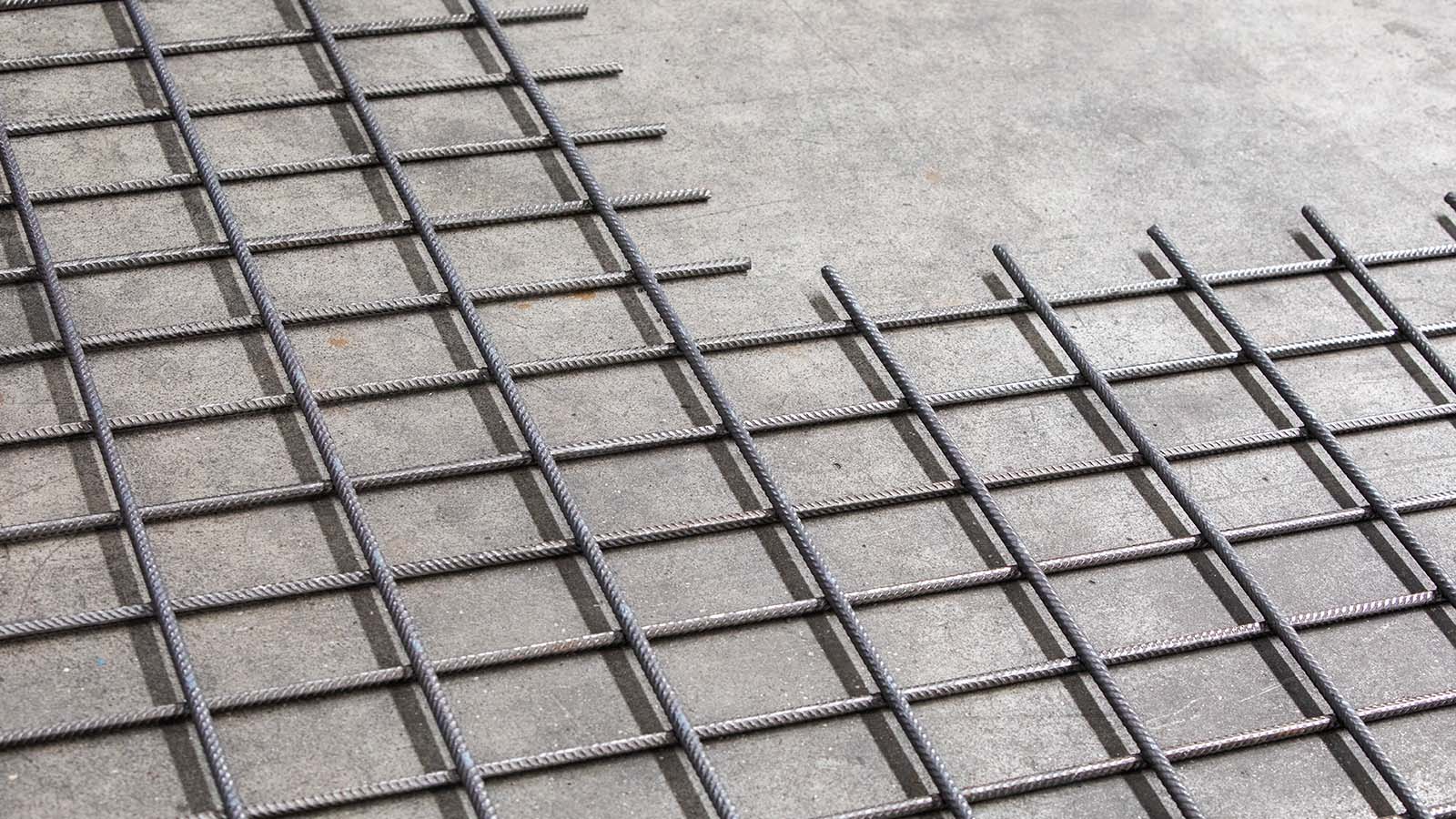

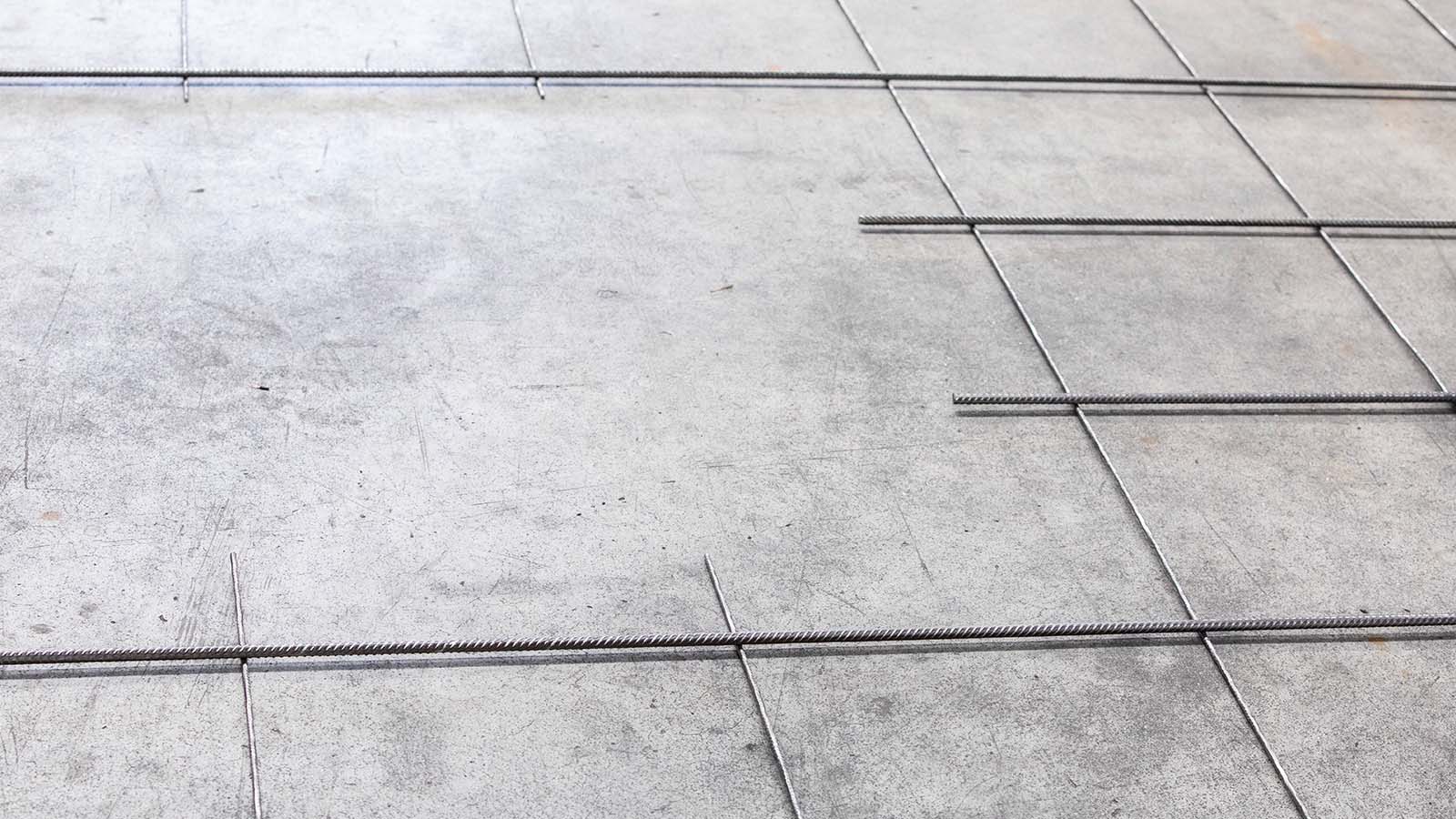

Flexible, multifunctional plant for the production of special mesh for precast elements.

TECHNICAL DATA

_ WIRE DIAMETERS: Ø4 mm - Ø20 mm

_ MESH WIDTH: max 5.000 mm

_ MESH LENGTH: max 15.000 mm

_ STRAIGHTENING LINES: standard up to 6 (customization available)

_ MAX. WELDING CAPACITY (Linewire +Crosswire): Ø 16 mm + Ø 16 mm

_ LONGITUDINAL WIRES PITCH: multiples of 50 mm or stepless

_ NUMBER OF LONGITUDINAL WIRES: at customer request

_ CROSS WIRES PITCH: min. 40 mm – Stepless

1. Wire uncoilers

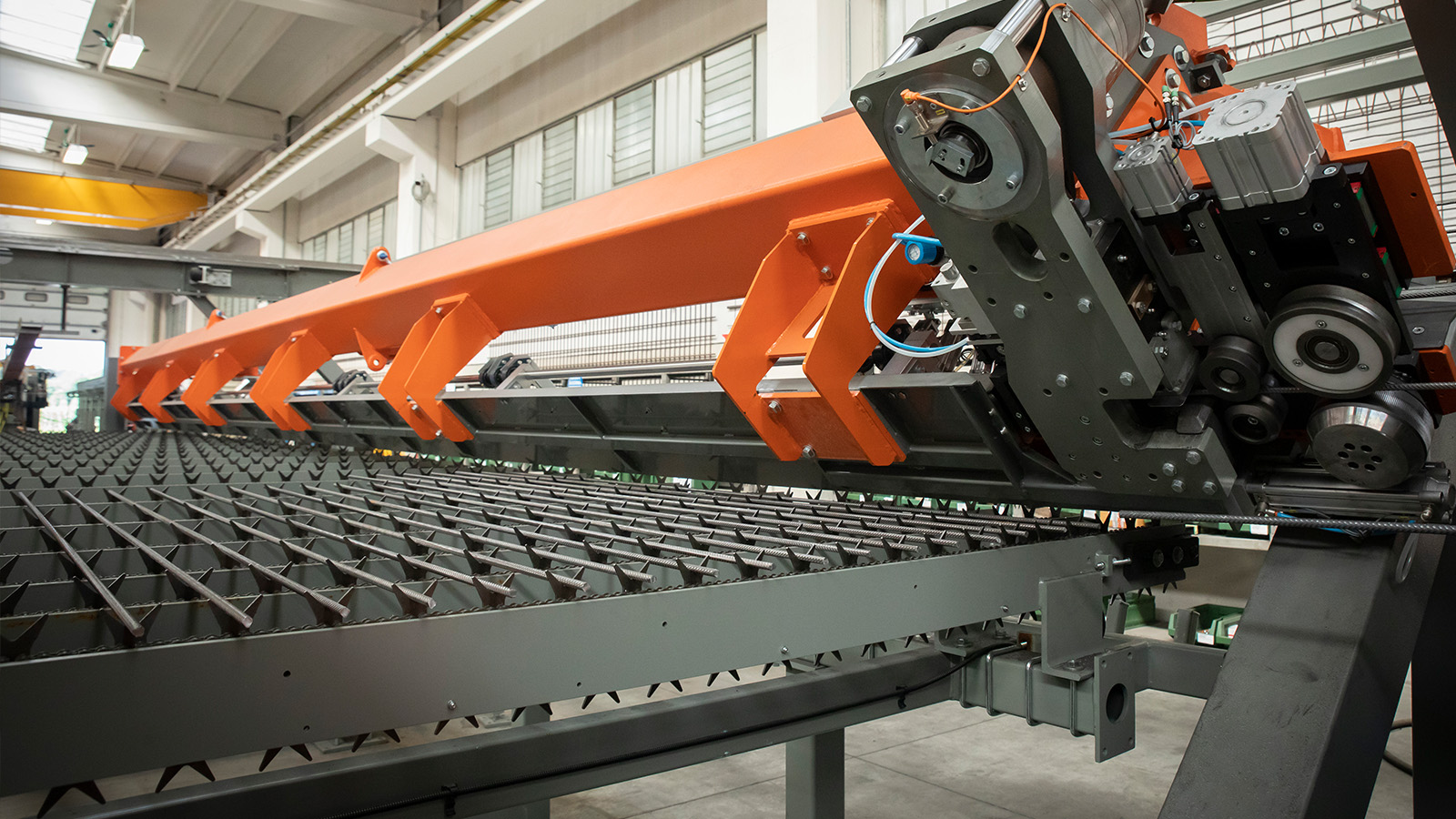

2. Straightening and cutting unit

3. Unloading channels

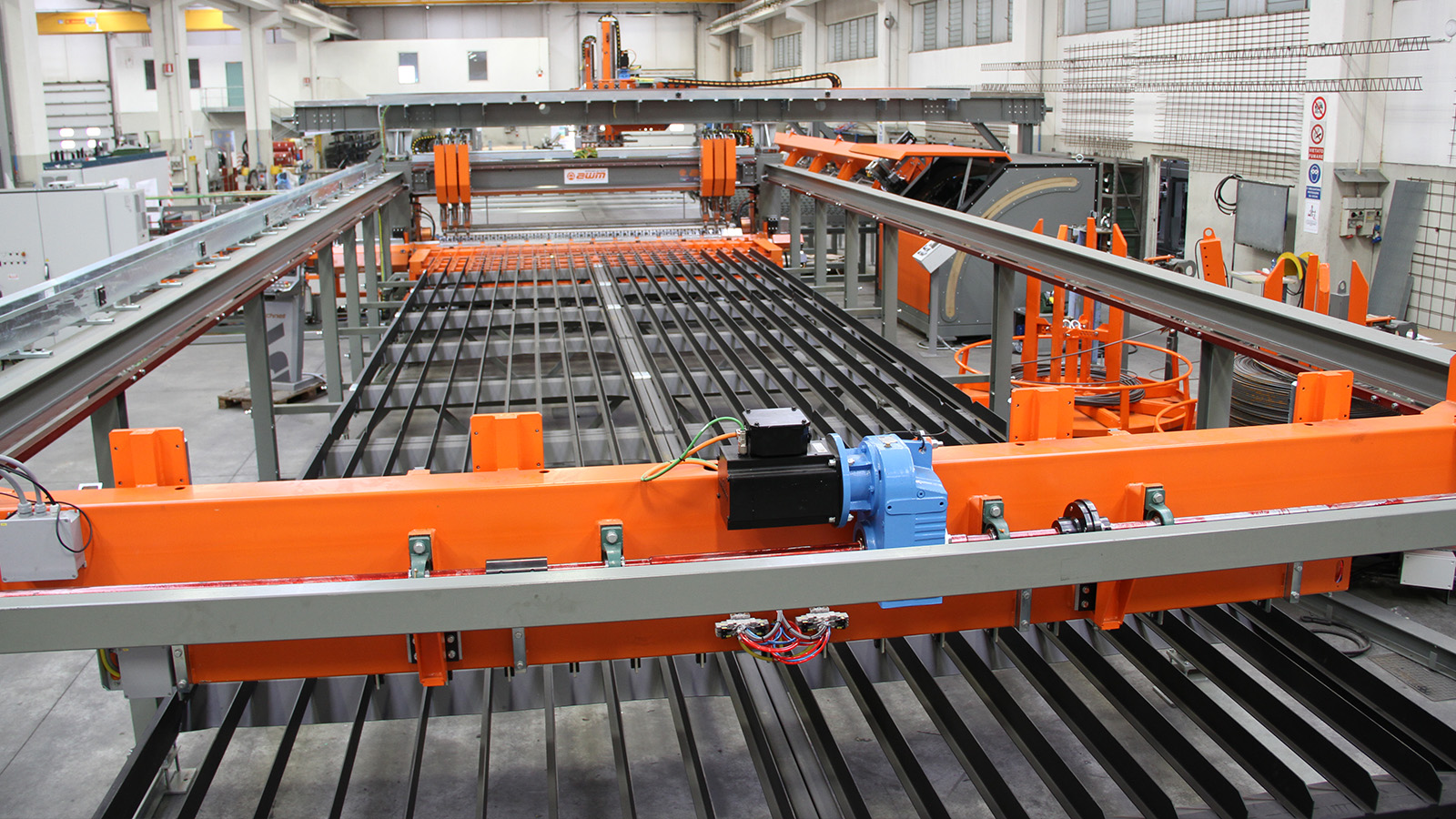

4. Longitudinal bars feeding system

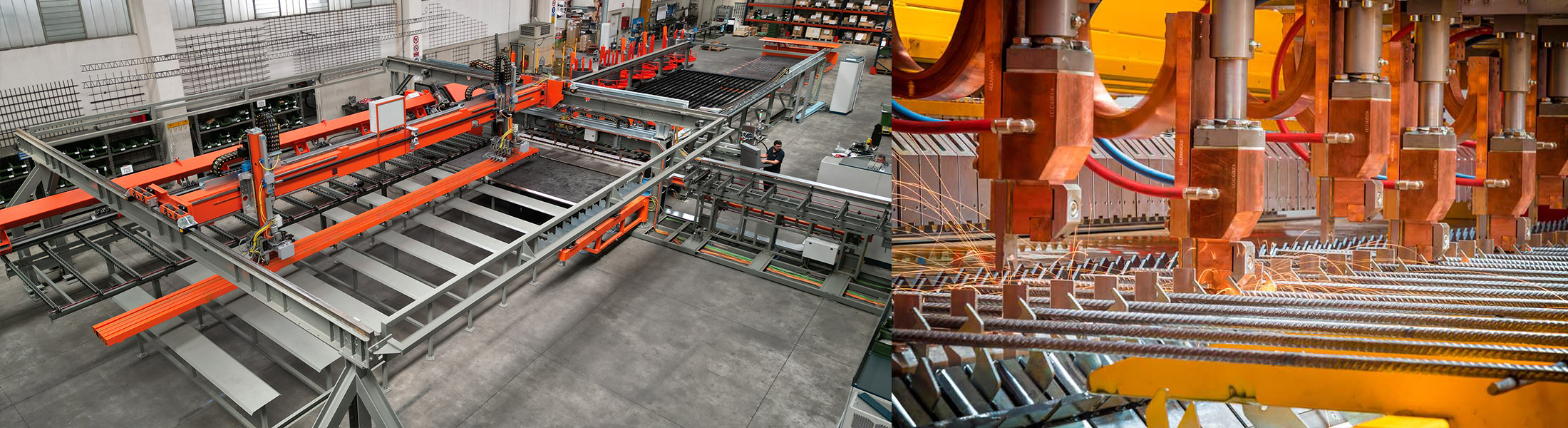

5. Welding portal

6. Primary mesh extraction carriage

7. Secondary mesh extraction carriage

8. Cart for mesh stacking
