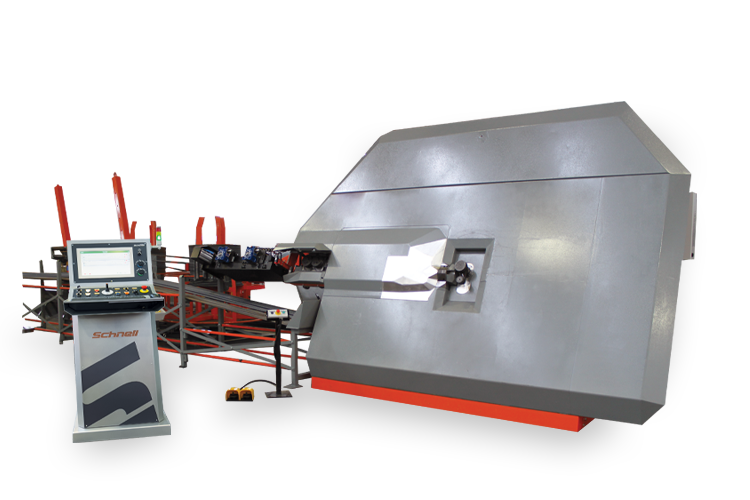

automatic stirrup bender
Bar Wiser 22 N Multifeed

Automatic dual directional stirrup bender for the production of stirrups from straight bars (up to Ø 22 mm - #7) or coils (up to Ø 16 mm - #5).
Driven by electric servomotors.

Bar Wiser 22N Multifeed automatic stirrup benders are equipped with:
- Max. pulling speed: 100 m/min (330 ft/min)
- External and internal straightening unit
- Virtual mandrel
- Web Teleassistance

Technical data

    Processed wire type
    Single strand

    Double strand

    Pulling speed
    HS version
    Bending speed
    Average power consumption

    Bar/Coil
    BAR: 1 Ø 8÷22 mm (#7)
    COIL: 1 Ø 8÷16 mm (#5)
    BAR: 2 Ø 8÷16 mm (#5)
    COIL: 2 Ø 8÷13 mm (#4)
    100 m/min (330 ft/min)
    Not available
    685°/sec
    2 kWh

As the products are in continuous development,
the technical specifications and images are purely by way of example and not binding.
