wire straightening and cutting machine
Reta 13 SUPER

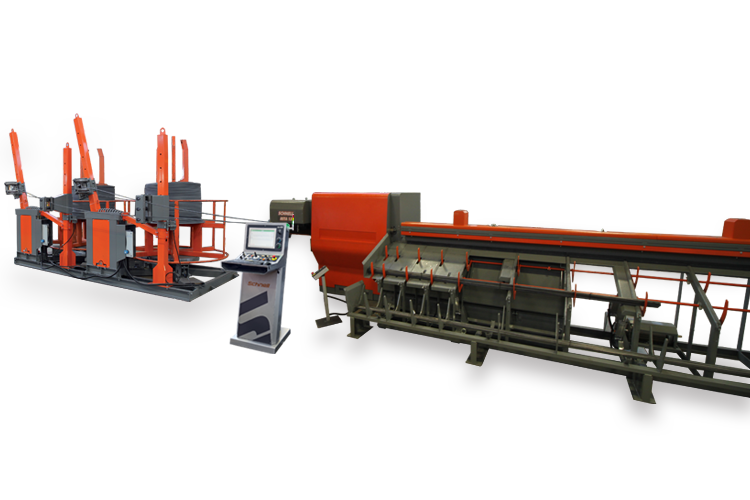

Fast automatic wire straightening and cutting machine, with rollers, for the production of cut-to-size wires up to Ø 13 mm (#4).
Driven by digital electric servomotors

- Max pulling speed: 240 m/min (790 ft/min)

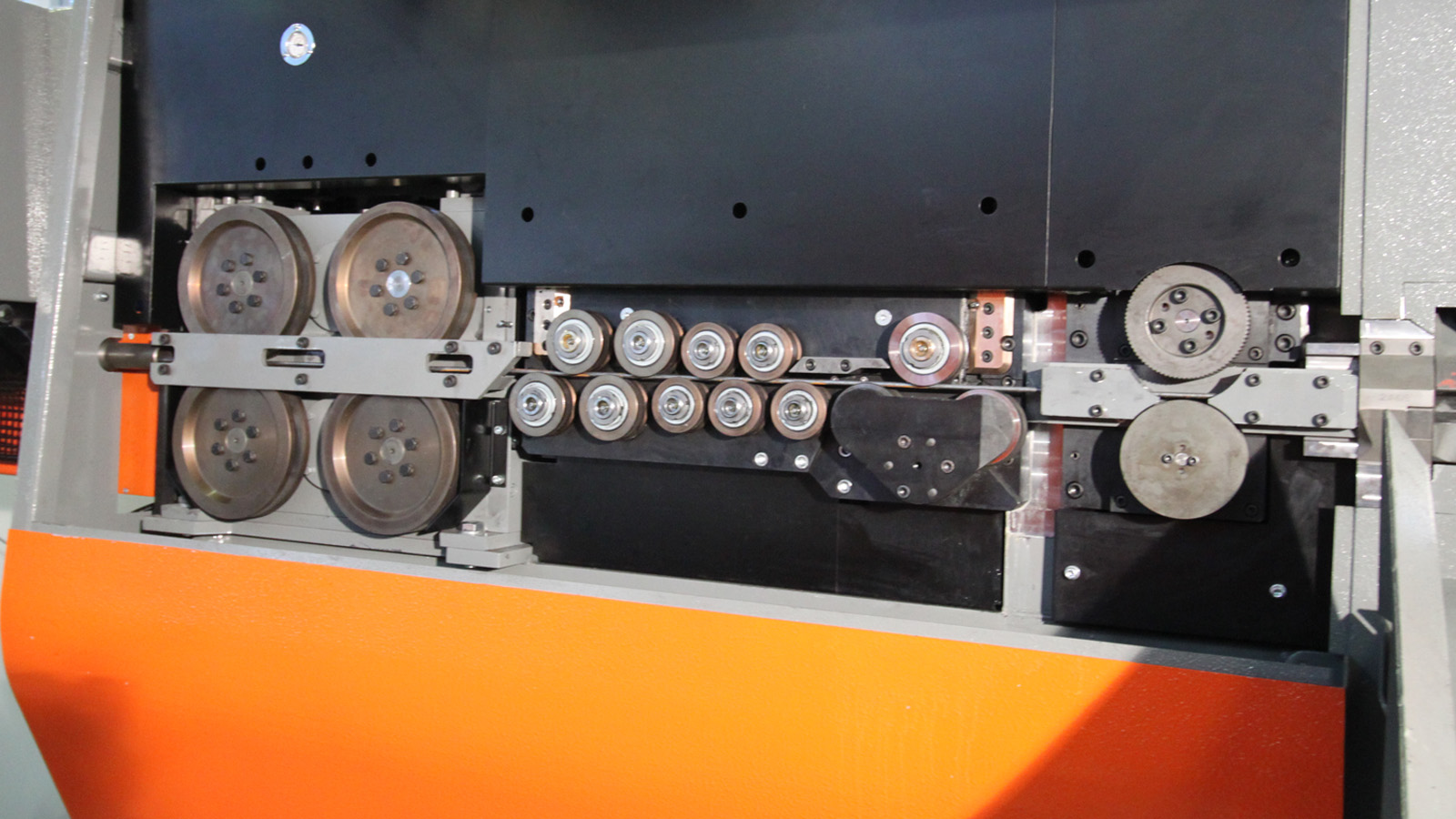

- Straighteners (horizontal-vertical) with electronic setting
- Rollers for the extraction of the last part of the coil (Optional)

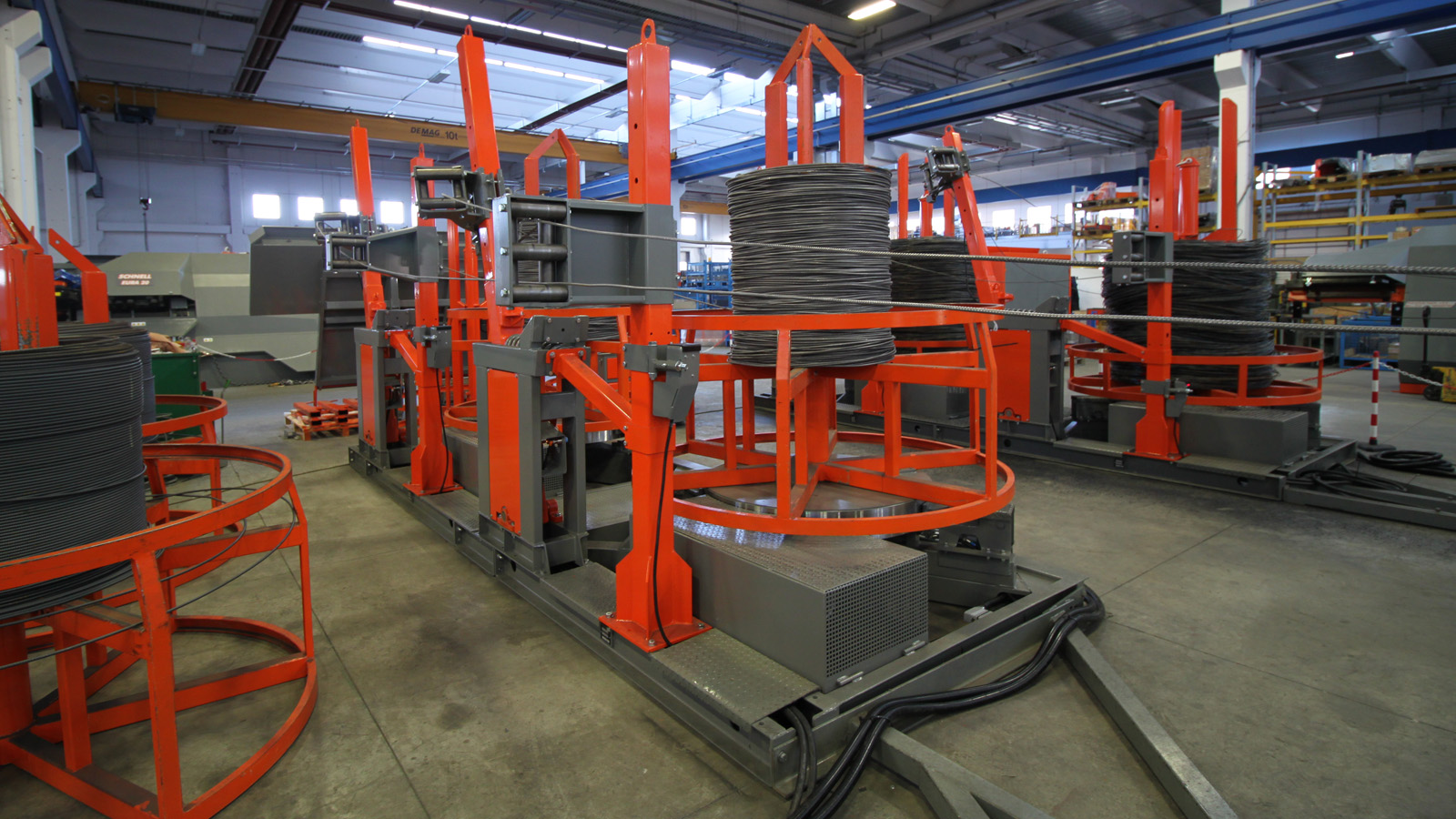

- Automatic 5-inlets motorized wire change and insertion unit (Optional)
Patented motorized horizontal wire change unit which allows to change the diameter and the coil in "Zero time" (Optional)
- Web Teleassistance

Technical data

    Single strand
    Double strand
    Pulling speed
    Average power consumption

    1Ø 5÷13 mm (#4)
    2Ø 5÷10 mm (#3) (OPTIONAL)
    up to 240 m/min (790 ft/min)
    20 kWh

As the products are in continuous development,
the technical specifications and images are purely by way of example and not binding.
