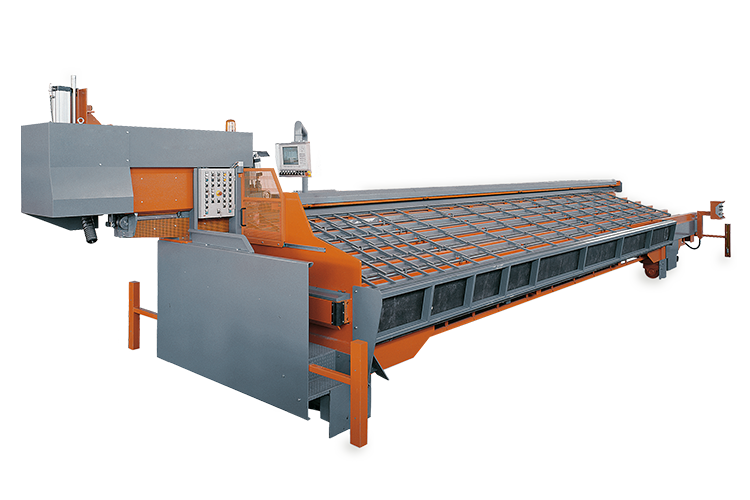

Automatic rebar cutting bench
BAT 6

Electro-mechanical automatic rebar cutting bench with 6 transfer roller conveyors.
The cutting bench 'BAT 6' represents the ideal solution for those working large numbers of small-sized orders and it is especially designed for civil housing.

Thanks to 6 different chambers optimise processing of small orders even without the transfer unit.

Besides being flexible and fast, its electromechanical technology ensures:
- high accuracy;
- minimum noise production;
- reduced power and air consumption;
- reduced maintenance.

Technical data

    .
    Cutting capacity



    Cuts per minute
    Pulling Speed
    Pulling Speed (Brushless)
    Average power consumption


    Cutting capacity




    Cuts per minute
    Pulling Speed
    Average power consumption


    Cutting capacity




    Cuts per minute
    Pulling Speed
    Average power consumption

    BAT 6 - 65 T
    1 Ø 32 mm (#10)
    2 Ø 26 mm (#8)
    3 Ø 20 mm (#6)
    4 Ø 16 mm (#5)
    30
    115 m/min (380 ft/min)
    160 m/min (530 ft/min)
    9 kWh

    BAT 6 - 100 T
    1 Ø 40 mm (#11)
    2 Ø 32 mm (#10)
    3 Ø 28 mm (#8)
    4 Ø 20 mm (#6)
    5 Ø 16 mm (#5)
    25
    135 m/min (450 ft/min)
    15 kWh

    BAT 6 - 160 T
    2 Ø 40 mm (#12)
    3 Ø 32 mm (#10)
    4 Ø 26 mm (#9)
    6 Ø 20 mm (#6)
    7 Ø 16 mm
    25
    150 m/min (500 ft/min)
    20 kWh

As the products are in continuous development,
the technical specifications and images are purely by way of example and not binding.
