Plant to cut the bars

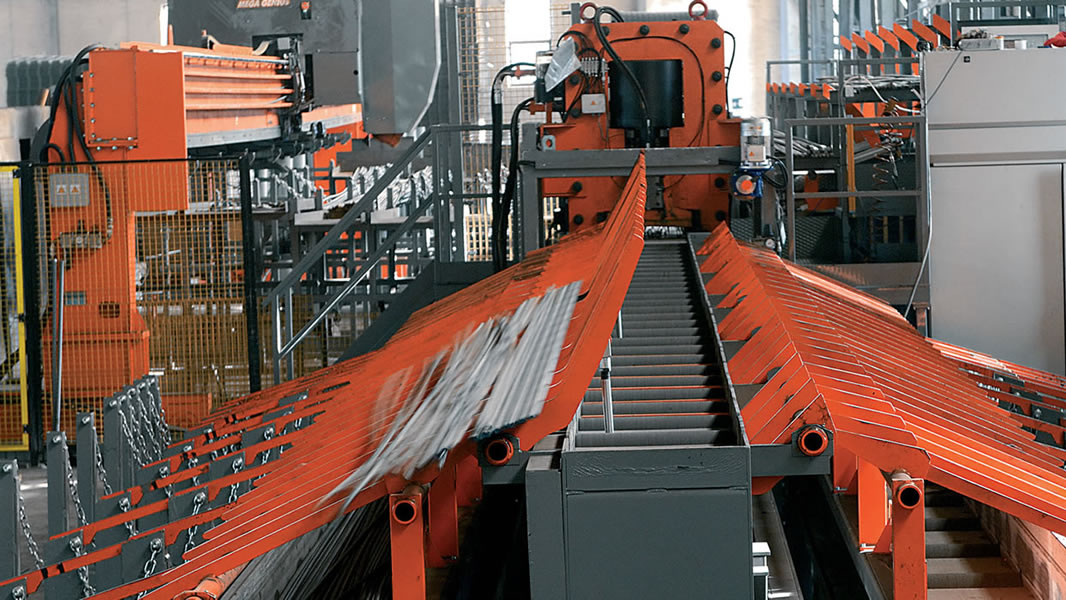

Integrated plant to cut, optimize, stock and handle the bars, suitable for mass productions, based on a shear CGS 500, mounted on a mobile frame, with blade of 500 mm (20''), VMT measuring and cutting track to cut the bars to size and unload them on the right or left.

In the VMT SUPERFAST version, the roller conveyors and the unloading systems are divided into two parts individually operated. This ensures a much faster working cycle.

Technical data

    Blade width
    Cutting capacity

    Cuts per minute

    500 mm (20")
    3 Ø 55 mm (#18)
    5 Ø 45 mm (#14)
    14 Ø 32 mm (#10)
    17 Ø 25 mm (#8)
    27 Ø 16 mm (#5)
    42 Ø 10 mm (#3)

As the products are in continuous development,
the technical specifications and images are purely by way of example and not binding.
