Bending machine for bar processing
P 30 ST

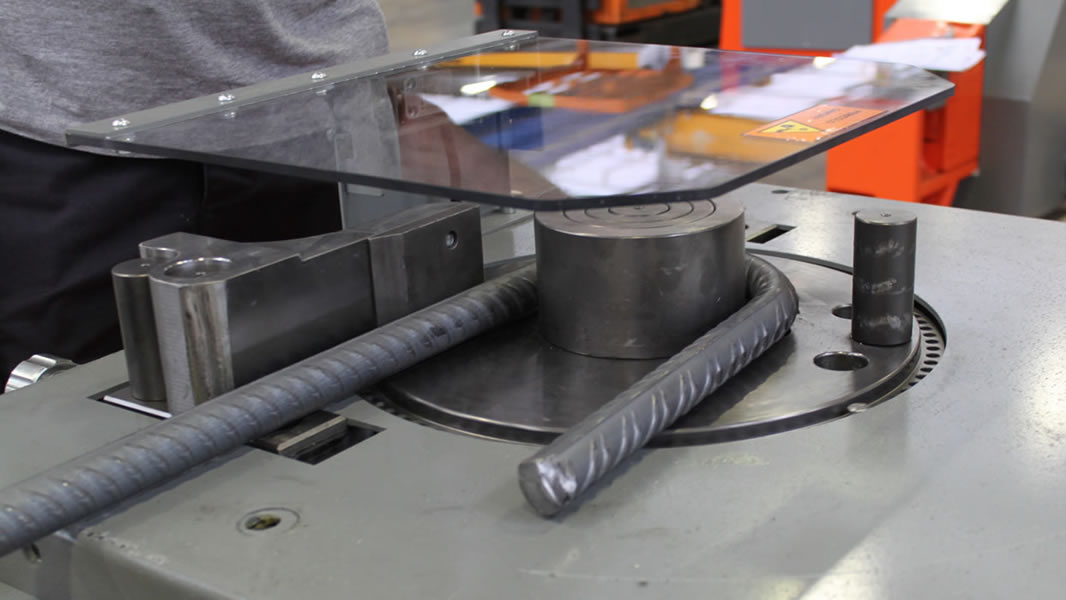

Bending machine for bar processing. Bending disk and adjustable strength steel saddles.

- Capacity: 1 bar Ø 28 mm (#8)
- Plate revolving speed: 10 RPM

Technical data

    Bending capacity

    Plate revolving speed
    Installed power
    Machine's weight
    Machine dimensions

    1 Ø 28 mm (#8)
    3 Ø 16 mm (#4)
    10 rpm
    1.5 kW
    270 kg (600 lb)
    76x81x86(h)cm (30"x32"x34"h)

As the products are in continuous development,
the technical specifications and images are purely by way of example and not binding.
