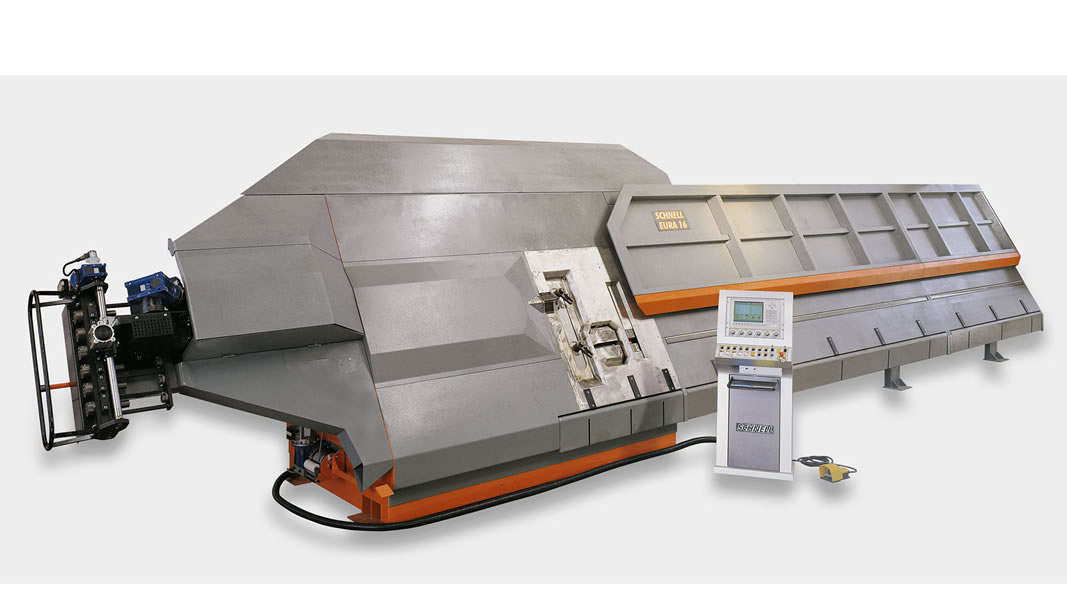

Stirrup bender and bar shaping machine
Eura 16

Stirrup bender and bar shaping machine from coil with 2 bending heads for the production of stirrups and shaped wires with bends at both ends using wires up to Ø 16 mm (#5).
Driven by electric servomotors.
Also available HS version machine.

These automatic stirrup benders and bar shaping machines are equipped with:
- Max. pulling speed: 140 m/min (460 ft/min) - HS Version: 200 m/min (660 ft/min)

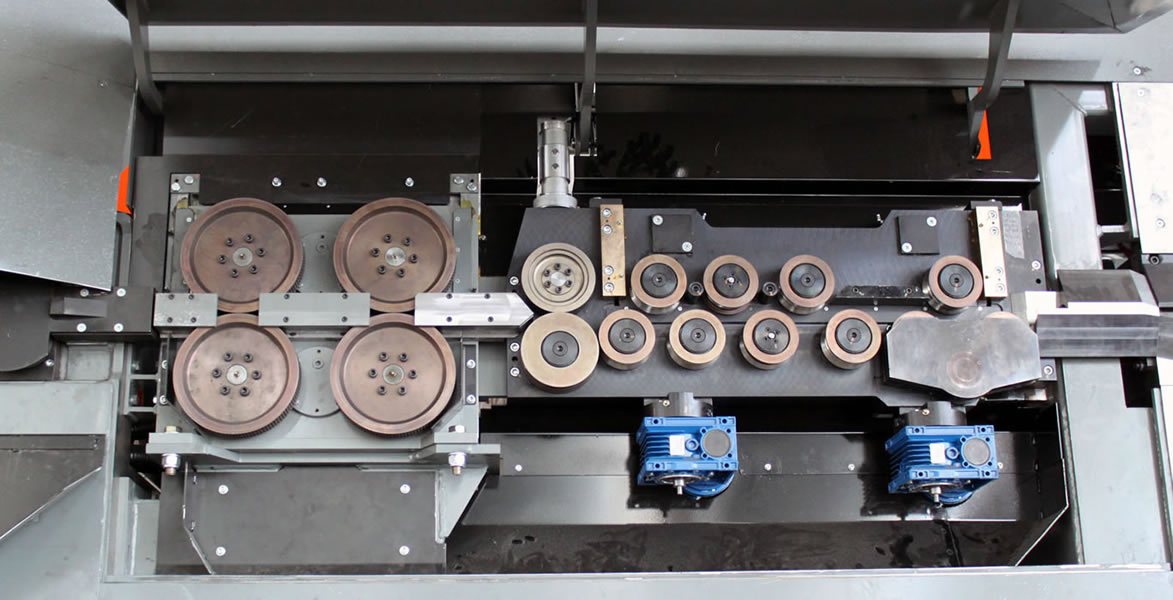

- Straighteners (horizontal-vertical) with electronic and independent setting for the 2 wires with Joystick
- Anti-Twist electronic device (Optional)

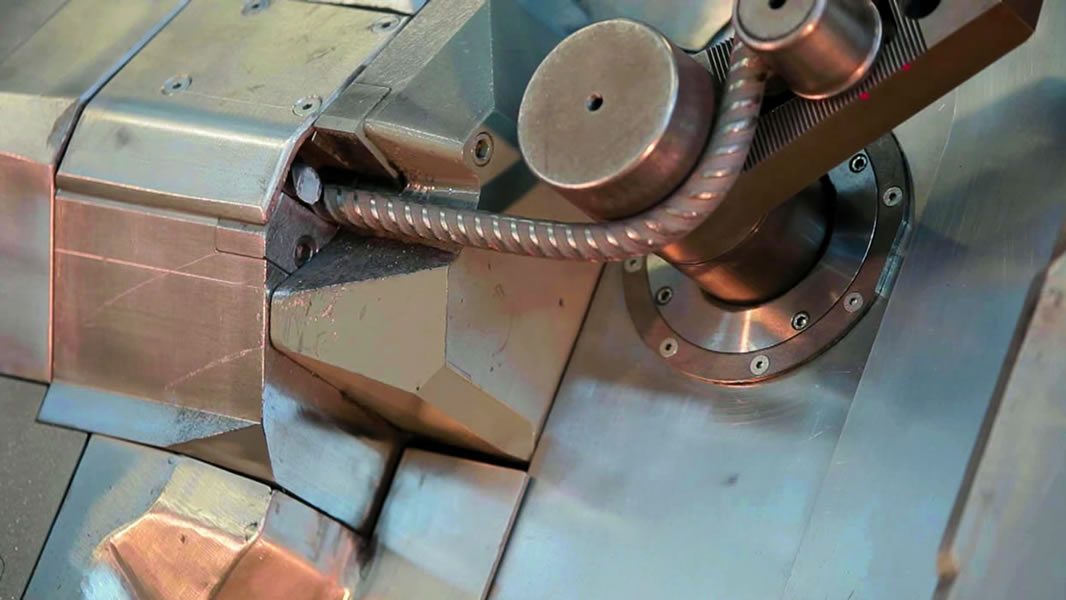

- Patented feed unit that allows independent advancement for single o double wire (Optional)

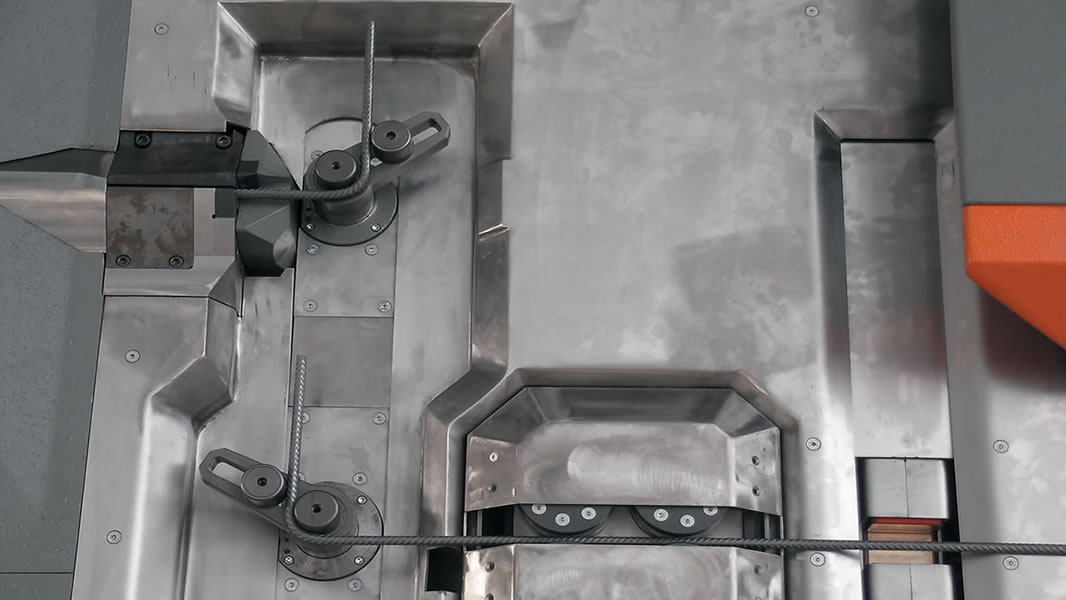

- 2 bending unit (upper and lower)
- 4 pulling drive wheels

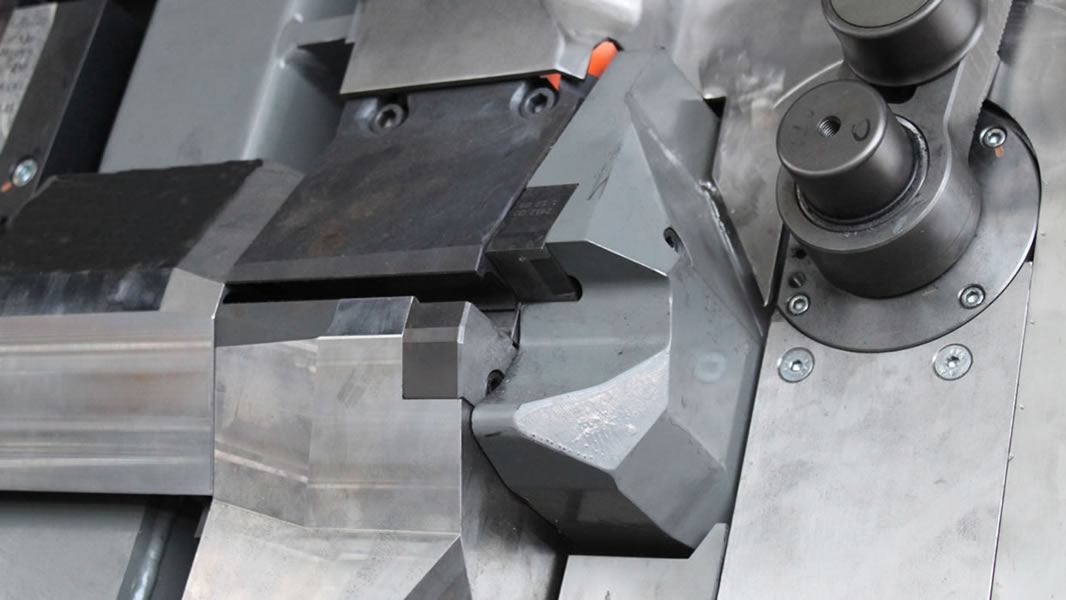

- Cutting unit with adjustable wire guide, reversible mobile and fixed cutting blades
- Web Teleassistance

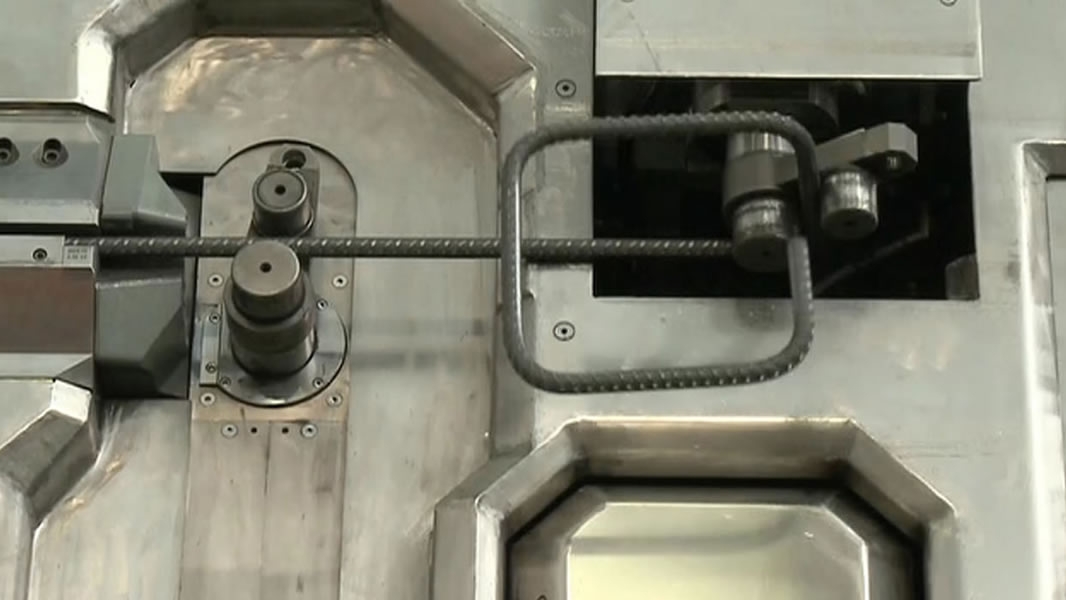

3D version for the production of tri-dimensional pieces.

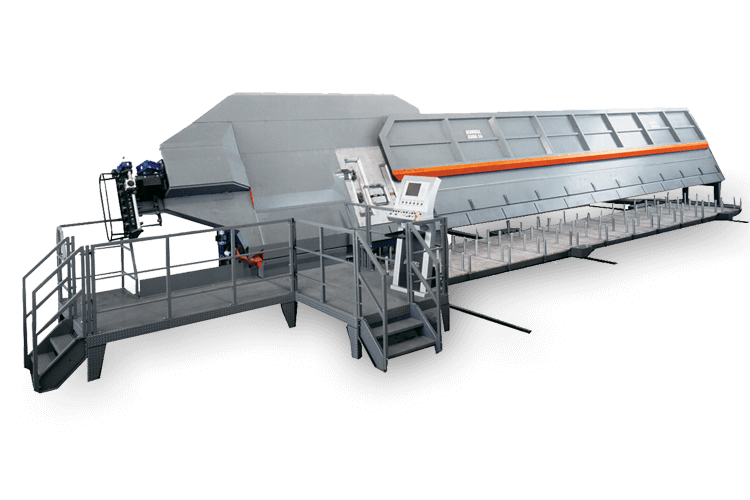

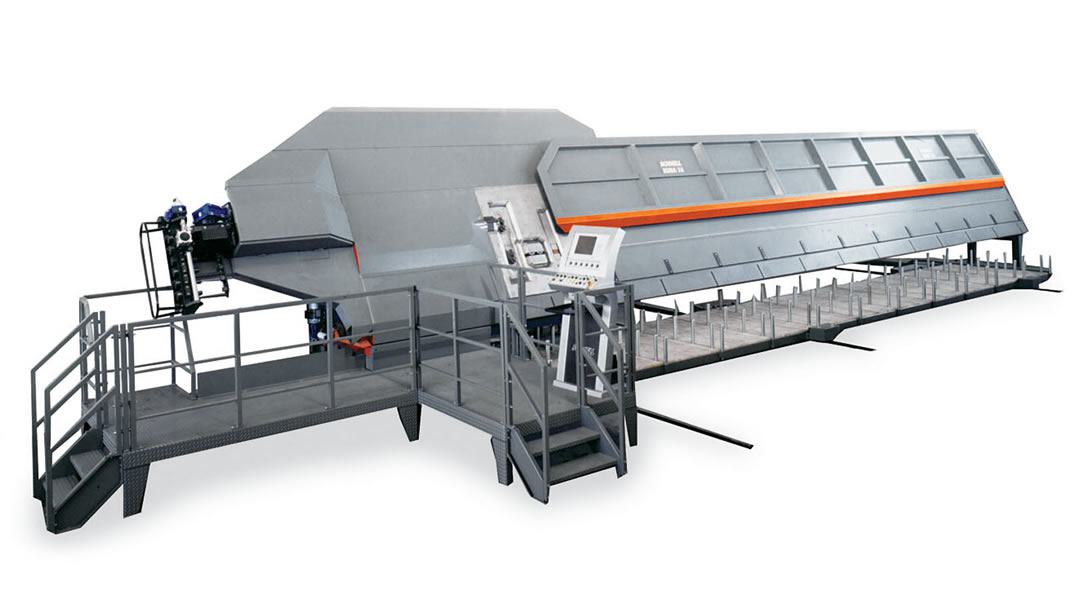

The 'bridge' version (Eura 16 Bridge) is suitable for accepting an optional mobile carriage which allows collecting and classifying the manufactured stirrups and rebars.

Technical data

    Processed wire type
    Single strand

    Double strand

    Pulling speed
    HS Version
    Bending speed
    Average power consumption

    Coil
    1 Ø 6÷16 mm (#5)

    2 Ø 6÷13 mm (#4)

    140 m/min (460 ft/min)
    200 m/min (660 ft/min)
    1680°/sec
    5 kWh

As the products are in continuous development,
the technical specifications and images are purely by way of example and not binding.
