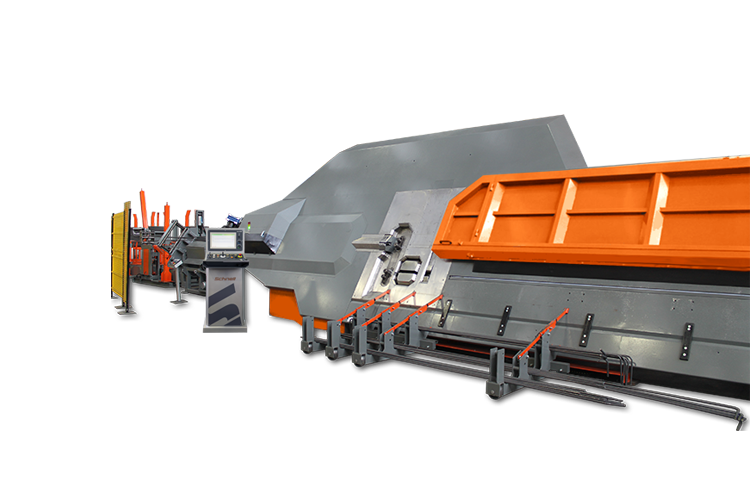

and bar shaping machine
from coil with 2 bending heads
for the production of
stirrups and shaped wires with bends at both ends using wires up to Ø 20 mm (#6).
Driven by electric servomotors.
These automatic stirrup benders and bar shaping machines are equipped with:
- Max. pulling speed: 140 m/min (460 ft/min)
- Straighteners (horizontal-vertical) with electronic and independent setting for the 2 wires with Joystick
- Anti-Twist electronic device (Optional)
- Patented feed unit that allows independent advancement for single o double wire (Optional)

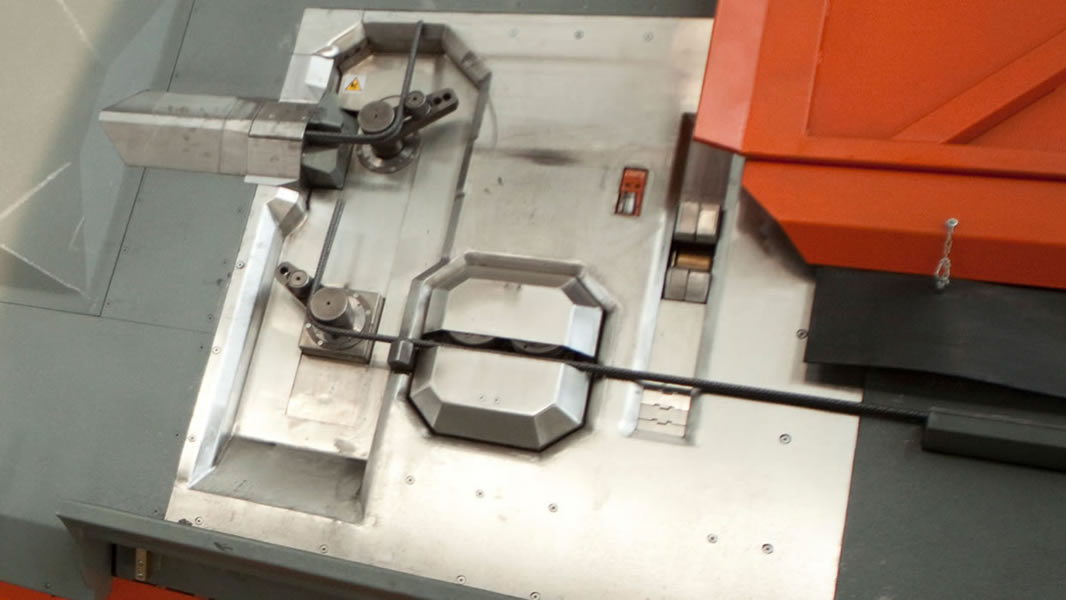

- 2 bending unit (upper and lower)
- Pulling with 4 motors and 4 pulling drive wheels
- Cutting unit with adjustable wire guide, reversible mobile and fixed cutting blades
- Web Teleassistance
- Pre-straightening Feeding Unit (Optional)
- Automatic motorized wire change (Optional)
3D version for the production of tri-dimensional pieces.

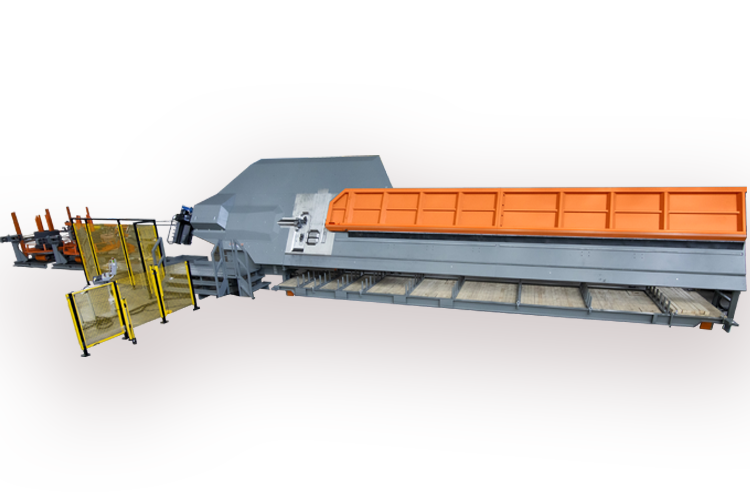

The 'bridge' version (Eura 20 Bridge) is suitable for accepting an optional mobile carriage which allows collecting and classifying the manufactured stirrups and rebars.
