Stirrup bender and bar shaping machine
Bar Wiser 22 S

Bi-directional stirrup bender and bar shaping machine from bar for the production of stirrups, shaped wires and cut-to-size bars using bars up to Ø 22 mm (#7). Driven by electric servomotors.

These automatic stirrup benders and bar shaping machines are equipped with:
- Max. pulling speed: 120 m/min (400 ft/min)
- Semi-automatic cycle for shaped wires with bends on both ends
- Virtual mandrel
- Web Teleassistance
- Automatic loader Genius (Optional)

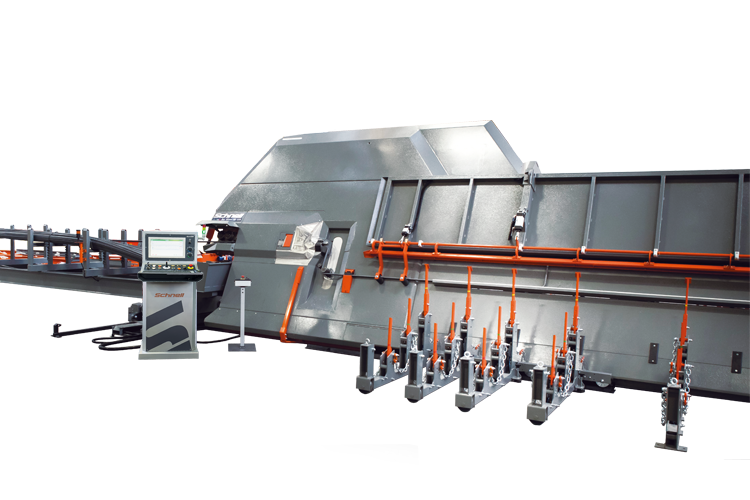

3D version for the production of tri-dimensional pieces.

Technical data

    Processed wire type
    Single strand

    Double strand

    Pulling speed
    HS Version
    Bending speed
    Average power consumption

    Bar
    1 Ø 8÷22 mm (#7)

    2 Ø 8÷16 mm (#5)

    120 m/min (400 ft/min)
    Not available
    840°/sec
    2 kWh

As the products are in continuous development,
the technical specifications and images are purely by way of example and not binding.
