lifting equipment for mesh panels

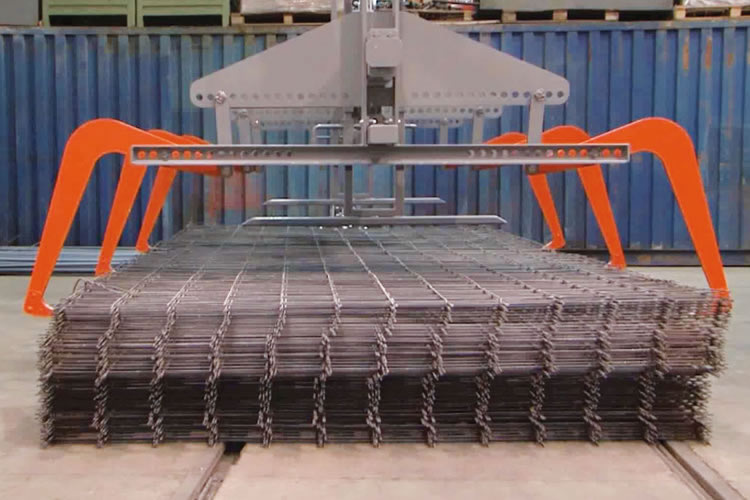

Mesh Spider EST

Mesh Spider is the lifting equipment to move electro-welded mesh panels which can hook mesh bundles from the outside.
Due to its automatic hooking and releasing device Mesh Spider can move one or more mesh bundles in a fast and safe way resulting in room saving as the bundles can be stocked one next to the other.

Thanks to its reduced dimensions, it can be used with both a crane or a forklift.

Available version:

MESH SPIDER 4-6 m EST: it is able to hook from the outside mesh bundles with 3 picking points.

Technical data

    Max. lifting weight
    Mesh length
    Mesh bundle height
    Min. Cross wires distance
    Picking points

    6000 kg (13200 lb)
    4÷6m (13'÷20')
    150÷700 mm (8"÷28")
    -
    3

As the products are in continuous development,
the technical specifications and images are purely by way of example and not binding.
