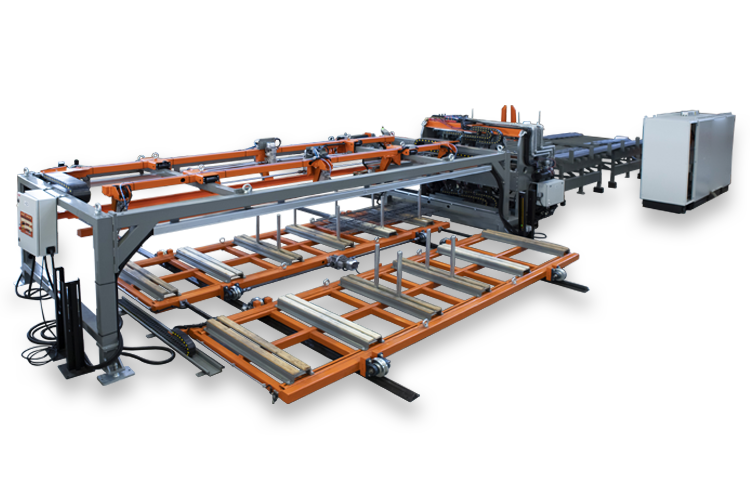

Ladder wire welding machine
STRIP 1200 CB

Ladder wire welding machine for the production of single or double electro-welded ladders with one or two tracks, working with line wires from pre-cut bars and with cross wires from coils.

Technical data

    Line wire diameter
    Cross wire diameter
    Line wire pitch
    Cross wire pitch
    Mesh panel width (min-max)
    Mesh panel length (min-max)
    Mesh roll length
    Weldings/minute
    Feeding of line wires
    Feeding of cross wires

    Ø 4 ÷ 16 mm (#3 ÷ #5)
    Ø 4 ÷ 10 mm (#3)
    60 mm (3") stepless
    50 mm (2") stepless
    60 ÷ 1200 mm (3"÷ 47")
    700 ÷ 9000 mm (2'÷ 29')
    -
    100
    Bars
    Coil

As the products are in continuous development,
the technical specifications and images are purely by way of example and not binding.
