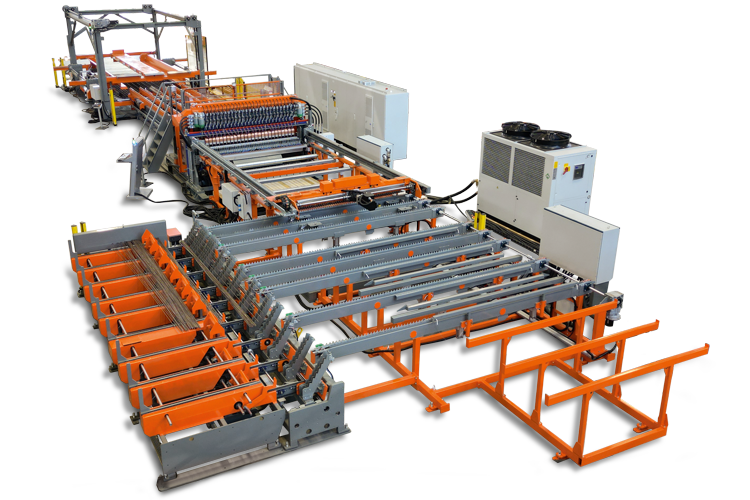

Mesh welding plant
Versa Line BB
Mesh Welding Plant for the production of both
standard and engineered mesh welding panels, working with pre-cut bars.
Max. welding speed
up to 120 strokes/min.
Cross wires come from coil and are injected into the welding portal.
Line wires can be fed in two different ways depending on the configuration of the machine:
- manually by the operator;
- from bundle of pre-cut wires automatically (Bar Lift).
Technical data
Line wire diameter Cross wire diameter Line wire pitch Cross wire pitch Mesh panel width (min-max) Mesh panel length (min-max) Mesh roll length Weldings/minute Feeding of line wires Feeding of cross wires
|
Ø 3 ÷ 12 mm Ø 3 ÷ 12 mm 50 mm (2") 50 mm (2") 1250 ÷ 2750 mm (50"÷108") 1500 ÷ 6000 mm (5'÷20') Not available 150 cross wires/min Bar/Compact Coil Compact Coil
|
As the products are in continuous development,
the technical specifications and images are purely by way of example and not binding.
