Mesh welding machine
Mesh Line BC

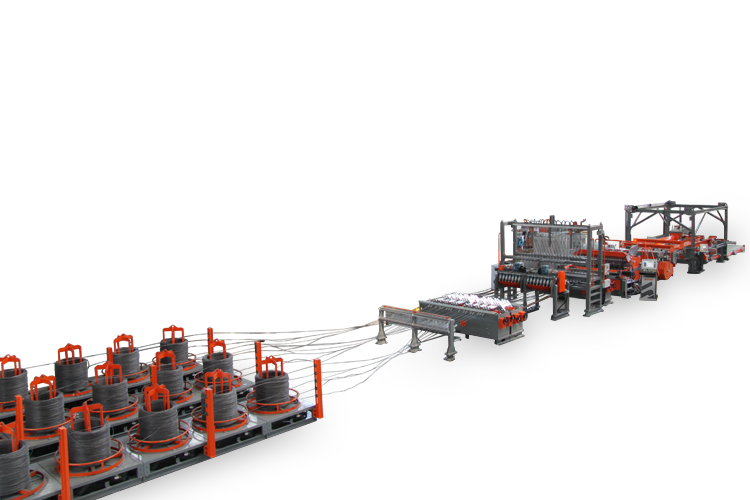

Mesh welding machine for the production of reinforcing mesh working with line wires from coils and cross wires from pre-cut wires. Range from Ø 3 to Ø 10 mm.

This mesh welding line is ideal for the production of both mesh panels and mesh in rolls.
Driven by digital electric servomotors.


- Low manpower
- Production of medium/big quantities of mesh panels
- Possible upgrade with automatic feeding group for cross wires (Fly-over)
- Web Teleassistance

Technical data

    Line wire diameter
    Cross wire diameter
    Line wire pitch
    Cross wire pitch
    Mesh panel width (min-max)
    Mesh panel length (min-max)
    Mesh roll length
    Weldings/minute

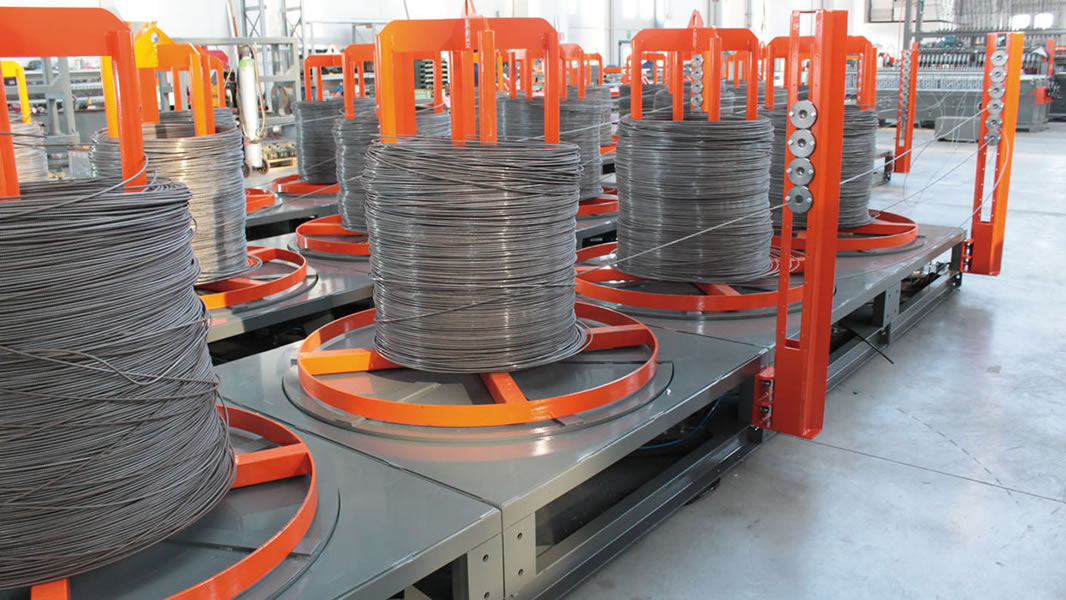

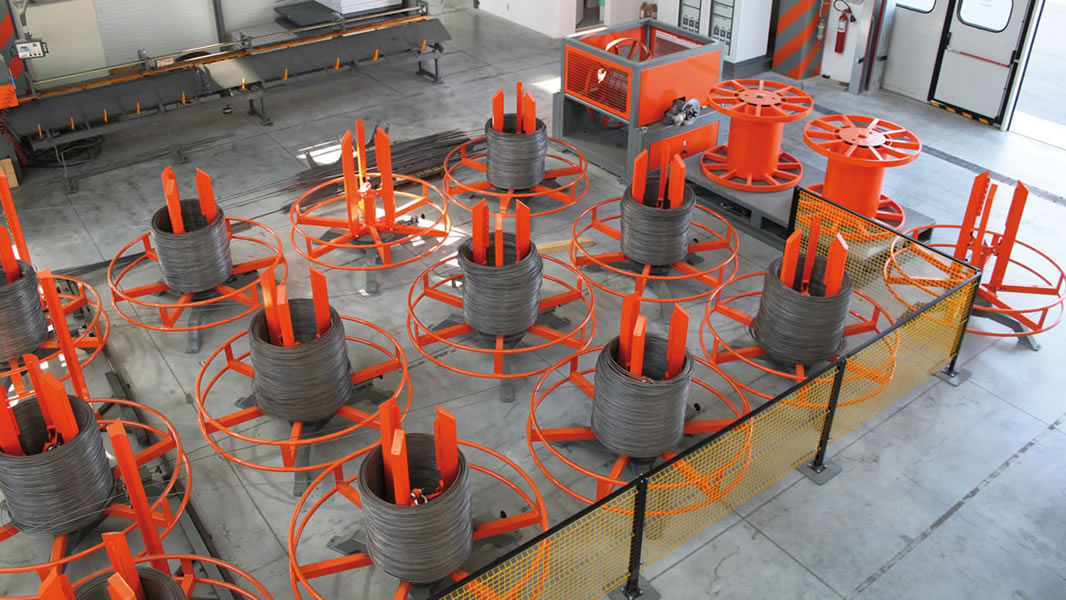

    Feeding of line wires
    Feeding of cross wires

    Ø 3 ÷ 10 mm
    Ø 3 ÷ 10 mm
    100-150-200 mm (4"-6"-8")
    50 mm (2")
    1250 ÷ 2500 mm (49"÷98")
    3000 ÷ 6000 mm (10'÷20')
    55 m (180')
    120 cross wires/min
    Coil
    Bars

As the products are in continuous development,
the technical specifications and images are purely by way of example and not binding.
