Plant for standard mesh
Compact Line

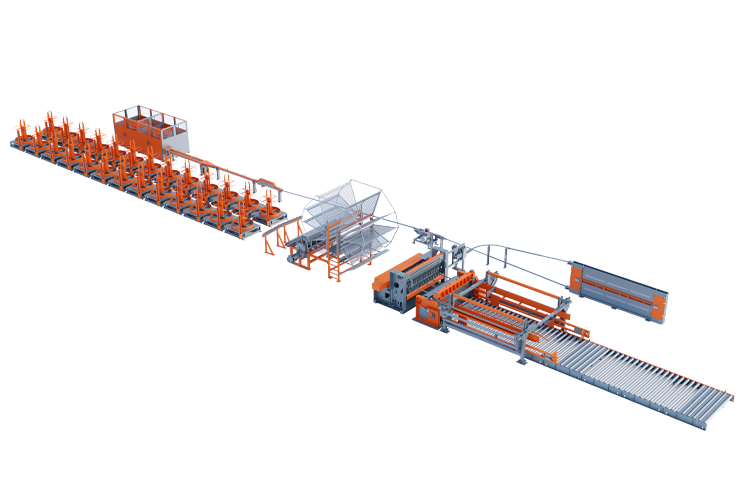

Compact Line is an automated system for the production of standard mesh, equipped with a direct welding system.

With cross wire and line wire feed from coils. This modern system, featuring a compact layout, is equipped with the “Top & Bottom” welding system, which enables the production of low-volume mesh bundles, optimising both space and logistics.

Technical data

    Line wire diameter
    Cross wire diameter
    Line wire pitch
    Cross wire pitch
    Mesh panel width (min-max)
    Mesh panel length (min-max)
    Mesh roll length
    Weldings/minute
    Feeding of line wires
    Feeding of cross wires

    Ø 3 ÷ 8 mm (0.118" ÷ 0.315")
    Ø 3 ÷ 8 mm (0.118" ÷ 0.315")
    100-150-200 mm (4-6-8") and multiple
    50 mm (2") stepless
    1250 ÷ 2500 mm (49"÷98")
    3000 ÷ 6000 mm (10'÷20')
    Not available
    120 cross wires/min
    Coil
    Coil

As the products are in continuous development,
the technical specifications and images are purely by way of example and not binding.
