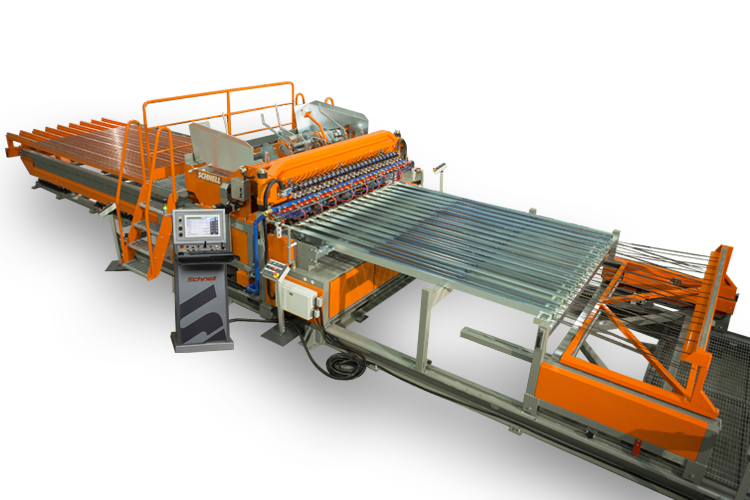

Mesh welding machine
Smart Mesh BB

Mesh welding machine for the production of either reinforcing mesh or fence mesh working with pre-cut wires. Range from Ø 3 to Ø 12 mm
This mesh welding plant is ideal for small mesh producers or as an ancillary machine for big mesh producers. Driven by digital electric servomotors

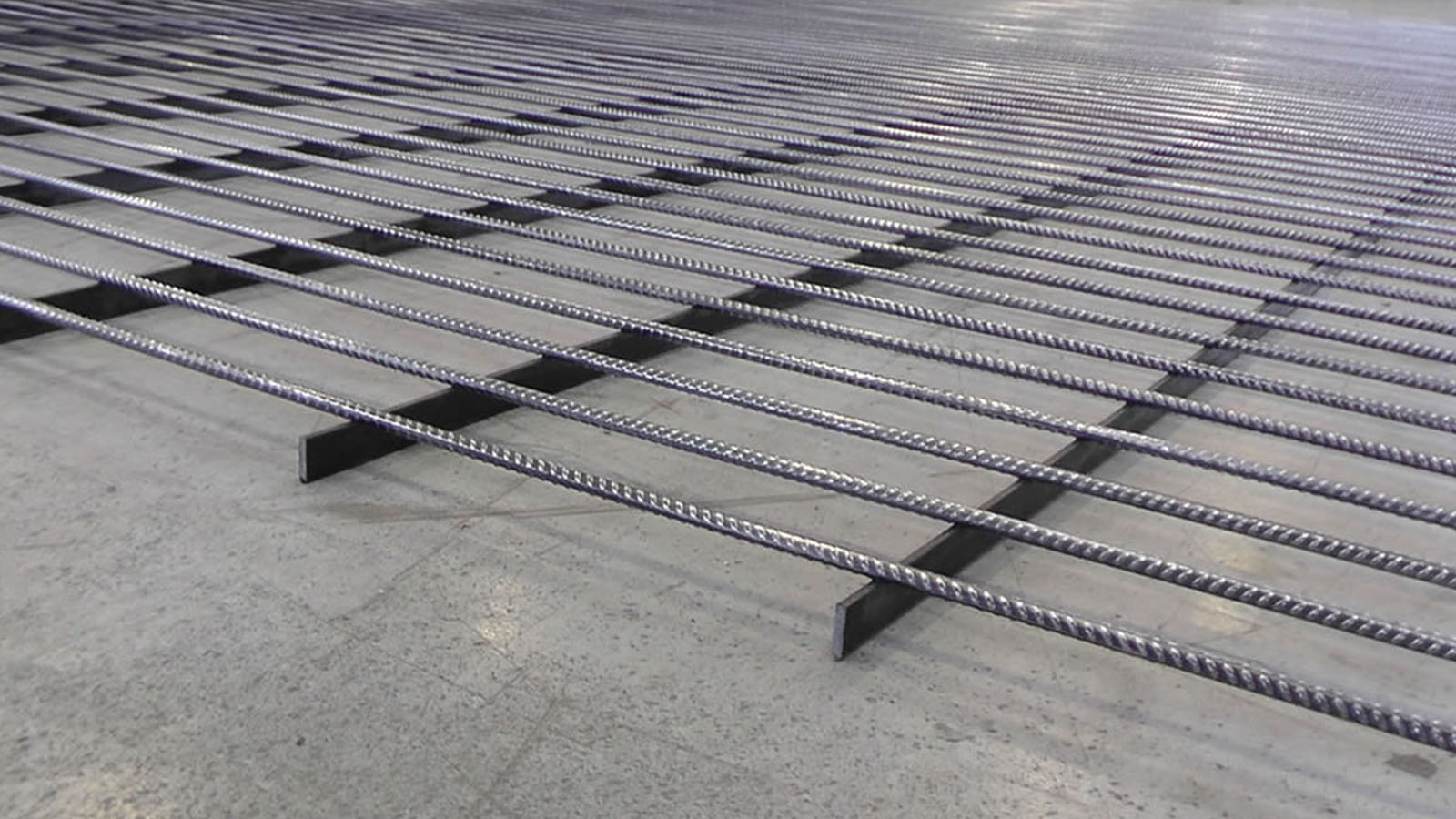

- High quality mesh panels
- Possible upgrade with automatic feeding group for cross wire and line wire
- Web Teleassistance

Technical data

    Line wire diameter
    Cross wire diameter
    Line wire pitch
    Cross wire pitch
    Mesh panel width (min-max)
    Mesh panel length (min-max)
    Mesh roll length
    Feeding of line wires
    Feeding of cross wires

    Ø 3 ÷ 12 mm
    Ø 3 ÷ 12 mm
    100 mm (4")
    20 mm (6/8")
    1,25 ÷ 2,50 m (49"÷98")
    3 ÷ 6 m (10'÷20')
    Not available
    120 cross wires/min

As the products are in continuous development,
the technical specifications and images are purely by way of example and not binding.
