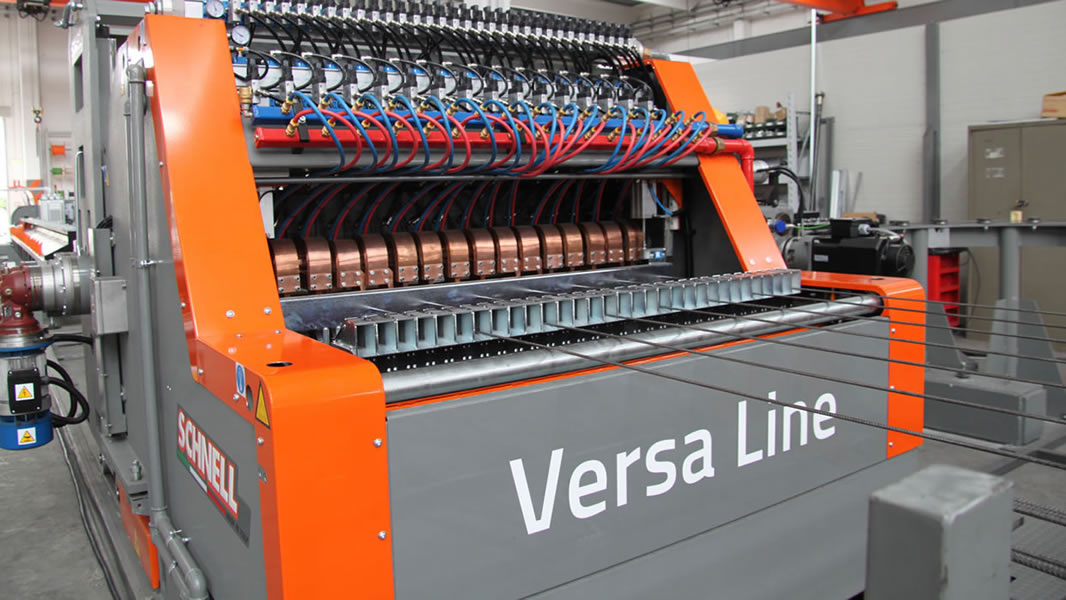

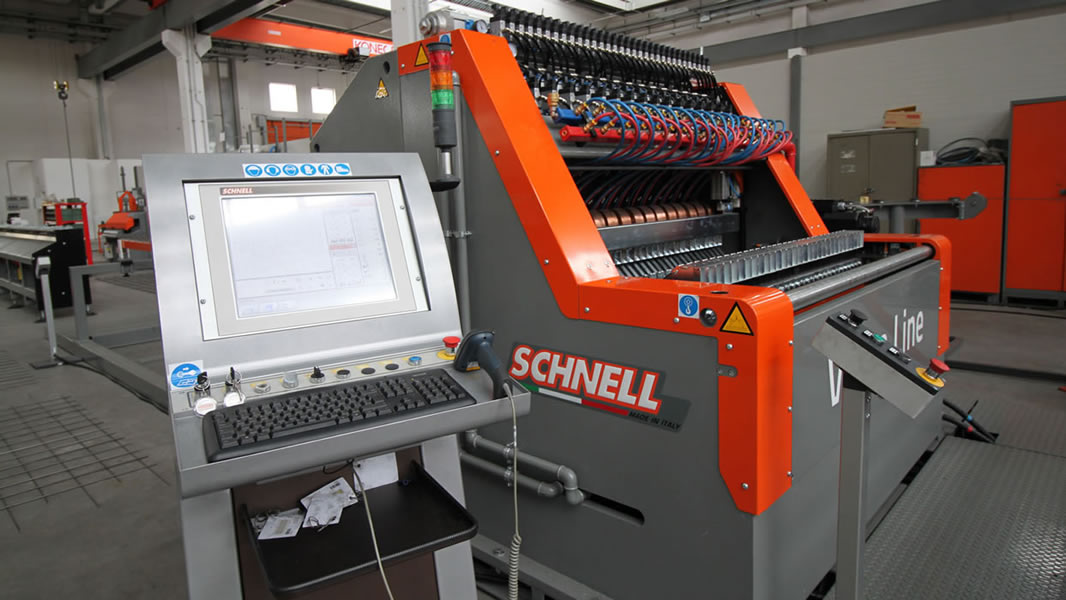

Mesh welding plant
Versa Line 1600/2000

Mesh Welding Plant for the production of both standard and engineered mesh welding panels. Max. welding speed up to 80 strokes/min.

Versa Line can automatically change:
- the external panel dimensions
- the pitch of line wires (automatically changeable), also within the same panel;
- the pitch of cross wires (stepless, min. 50mm);
- the diameter of both line and cross wires;
- it can weld staggered line and cross wires.

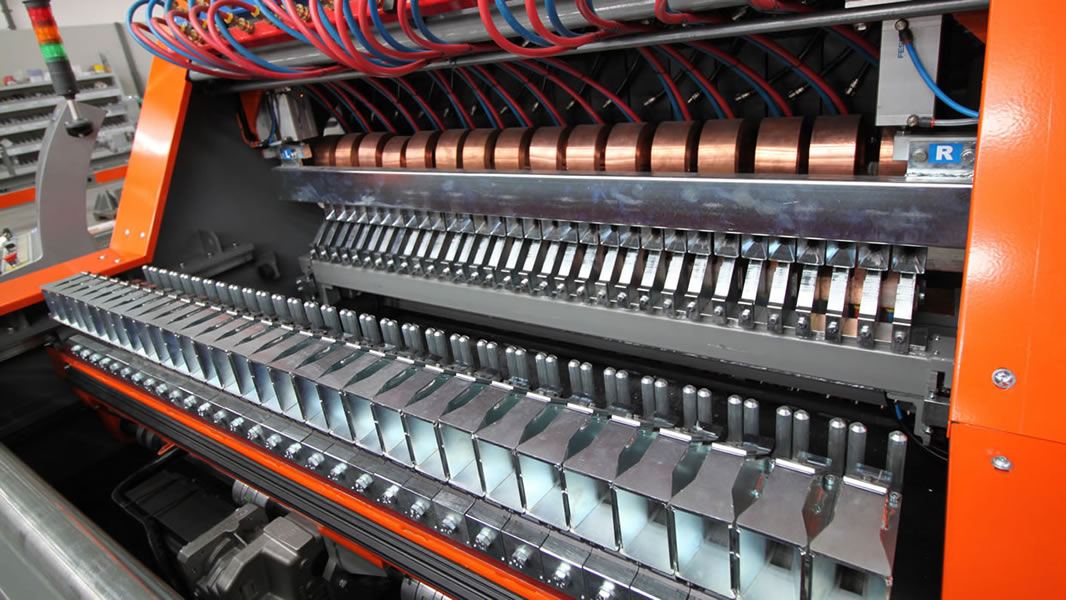

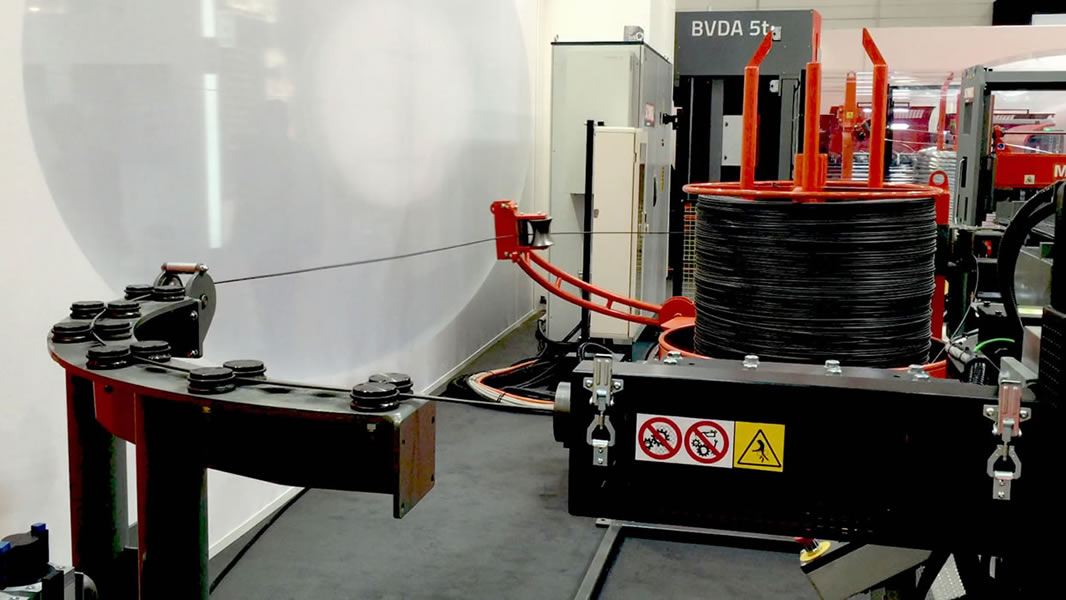

Cross wires come from coil and are injected into the welding portal.

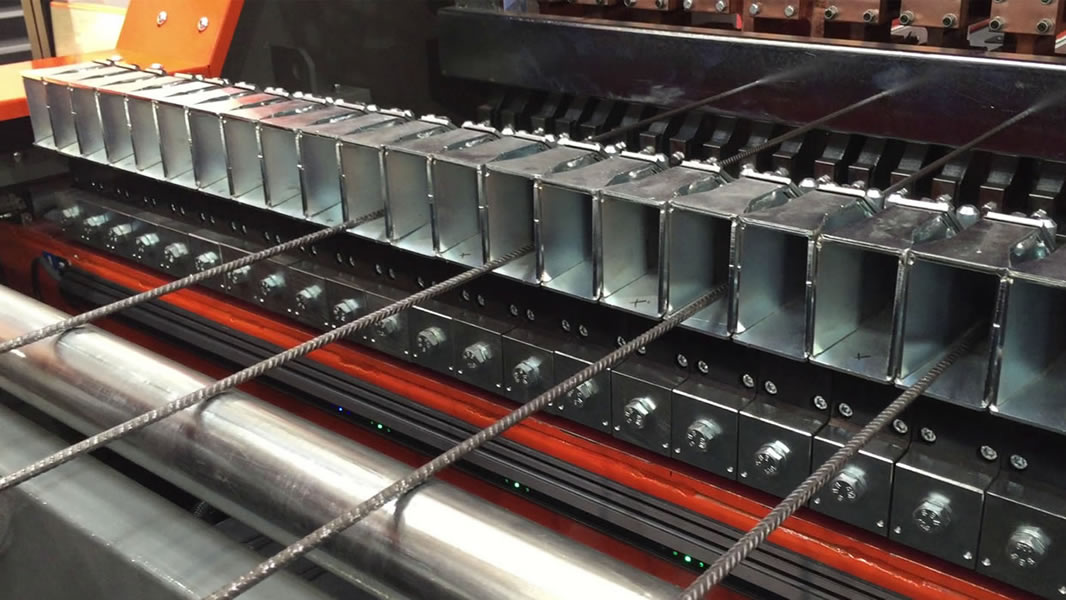

Line wires can be fed in three different ways depending on the configuration of the machine:
- manually by the operator;
- from bundle of pre-cut wires (automatically);
- from the wire straightening machine integrated with the plant (automatically).

Technical data

    Line wire diameter
    Cross wire diameter
    Line wire pitch
    Cross wire pitch
    Mesh panel width (min-max)
    Mesh panel length (min-max)
    Mesh roll length
    Feeding of line wires
    Feeding of cross wires

    Ø 4 ÷ 12 mm
    Ø 4 ÷ 12 mm
    50 mm (2")
    50 mm (2")
    800 ÷ 1600/2000 mm (30"÷63"/80")
    1,5 ÷ 6 m (5'÷20')
    Not available
    80 cross wires/min

As the products are in continuous development,
the technical specifications and images are purely by way of example and not binding.
